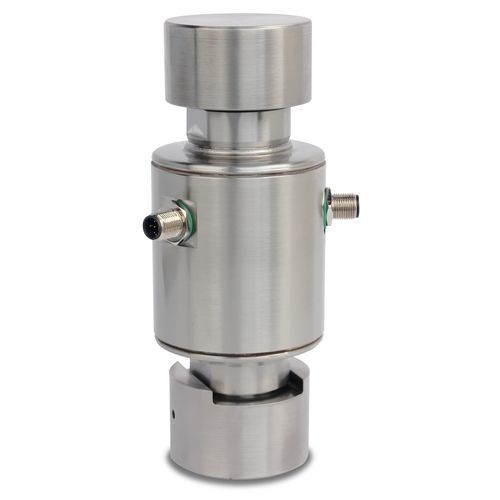

Compression load cell DC series

canisterstrain gaugedigital

Cardinal Scale’s DC series SmartCell® stainless steel compression digital load cells daisy-chain together for ease of wiring and the cables connect automatically to the load cell. Internal load cell circuitry eliminates the need for a junction box. The OIML-certified DC series come in either 22,700 kg / 50,000 lb or 45,000 kg / 100,000 lb capacities and they include iSite remote diagnostic monitoring software with automatic text/e-mail alerts. The DC series feature SmartCal for easy calibration, anti-rotation, and extra robust upper and lower cups. The stainless steel IP69K-rated DC series may be interchangeable with Cardinal Scale’s SCA load cells for complete digital conversions on vehicle scales and tank/hopper scales. Sense leads are no longer required like in analog load cells since variations in systems voltage no longer affect the load cell. Features • 22700 kg / 50000 lb and 45000 kg / 100000 lb Capacities • Anti-Rotation Mounting • Cables Connect Automatically to Load Cells • Daisy-Chain Cells Together for Ease of Wiring • Everything Needed for a Vehicle Scale Minus the Weighbridge • Extra Robust Upper and Lower Cups • Includes iSite Remote Diagnostics Software with E-mail and Text Alerts • Interchangeable with Cardinal SCA Load Cells for Complete Digital Conversions • IoT-Enabled Digital Load Cells • IP69K Rated for High-Pressure and High-Temperature Washdown Applications • No Junction Box Necessary • Stainless Steel Load Cells Specifications Cell Type: Digital compression load cell Rated Output: Cardinal digital output Protection Class: IP69K Connectors: 5-Pin, M12 Male, A-Coding OIML Certification: R60/2000-GB1-17.18
