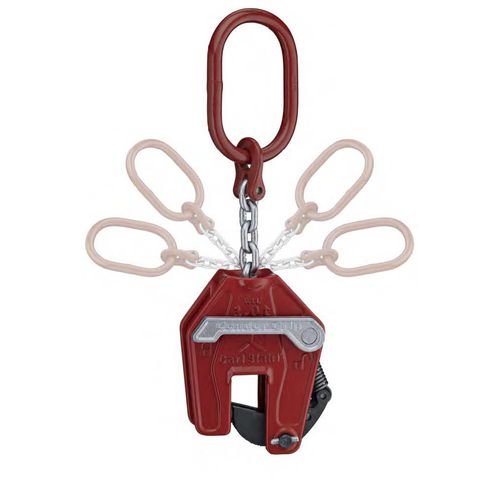

Sheet metal lifting clamp CGUK

verticalhorizontal

The CondorGrip CGUK universal clamp is an innovative development for horizontal and vertical transportation. The lifting clamp impresses with its unique, patent-pending design, which enables optimum safety in all pull directions. • For lifting, turning (180°) and transport of steel sheets, steel constructions and standard profiles • Rigid, FEM-optimised forged housing with a low dead weight • Load capacity and grab range forged into the housing • Traffic red (RAL 3020), powder-coated housing • Fewer wear parts thanks to the new and innovative chain guide • Permissible 360˚ pull at a 90˚ angle, therefore suitable for more universal use than comparable models • Two grab jaws enable optimum connection to the load • Ergonomically designed safety lever can also be operated when wearing gloves • The suspension eye can be directly hung on the crane hook (suitable for use up to crane hook size 2.5) • Version CGUK10 = standard version • Version CGUK18 = high-strength version • Permissible minimum load 10% of the load capacity/WLL • For transport goods with surface hardness up to 32 HRC (1,030/mm²) Option: • Oval ring for larger crane hooks • Individually adjustable chain length
