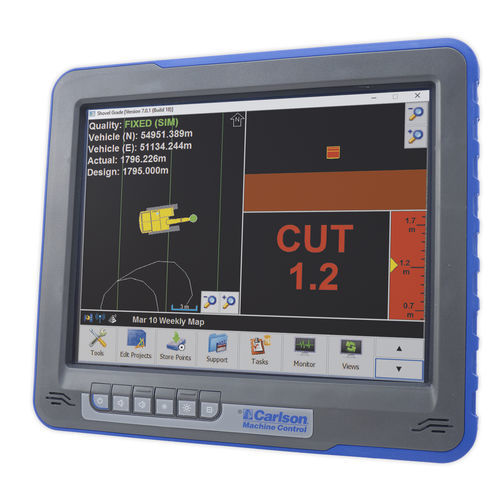

Control terminal with touch screen

mobilefor forklift trucks

Dig to Design with Ease Carlson Grade for excavators and shovels allows operators to visualize cut/fill with positioning using an onboard, ruggedized, Windows-based tablet known as the MC8 or MC10. Operators are able to view a cut/fill color map in real-time, dig to design, build simple or complex pads and slops in the field, and more. • Consistent user interface across all solutions • Flexible and easy to use interface • Multiple view options available in profile, section, and plan • Directly import from open CAD and Carlson platforms • DWG, DXF, TN3, GC3, LN3, TIN, GRD • Track machine utilization, downs, and delays • NTRIP and VRS compatibility • Able to handle large surface files • Real-time machine system view and troubleshooting capability from anywhere in the world • Peer to peer communication and information sharing capability between all machines • Works as a stand-alone system or as part of a fleet environment with multiple machines BENEFITS • Build to design for better highwall and proper bench elevation • Dig to design utilizing surfaces or block models • Reduce survey costs • Real-time cut/fill/on-grade to multiple design surfaces • Build simple or complex pads and slopes in the field (flat/single/dual/multi) • Accurately build to elevation • Update surfaces and cut/fill color map real-time across the entire project • Track single or multiple points • Able to work with bucket and clam shovel configurations SAFETY BENEFITS • Increase operator situational awareness through proximity warnings between machines and fixed assets • Increase operator awareness by utilizing 2D and 3D watch zones and warning zones
