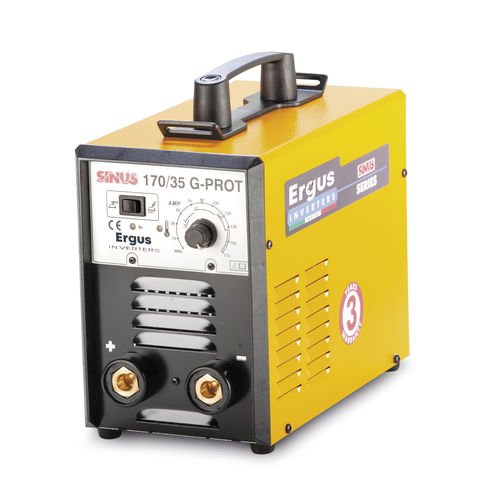

MMA welder ERGUS SINUS 170/35 G-PROT

TIGelectrodesingle-phase

MMA (electrode) and TIG (lift-arc ignition) inverter, ideal for workshop and outdoor works. DUTY • TIG DC duty cycle 200 A – 40% • TIG DC output at 100% duty cycle 140 A • Electrode duty cycle 200 A – 35% • Electrode output at 100% duty cycle 130 A INVERTER • Mains voltage 230V ±10% • Frequency 50/60Hz • OCV 85 V • Electrode Nominal Power 100% 4,1 KW • TIG DC Nominal Power 100% 2,7 KW • Electrode arc voltage 20,2 – 28,0 V • TIG arc voltage 10,2 – 18,0 V • Max current 36 A • Protective Fuses time lag20 A • Power factor 0,85 • Degree of protection IP 23 S • Insulation Class F • Working temperature -10°C+40°C • Size (mm) 385x180x220 • Weight (Kg) 9,25 FEATURES • Electrode output range 5 – 200 A • TIG DC output range 5 – 200 A • Hot start Automatic • Arc force on-off option • Antisticking Automatic • Type of arc ignition LIFT ARC • Pulser YES • Pulser frequency 3 OR 175 Hz • Pulser duty cycle 50%
