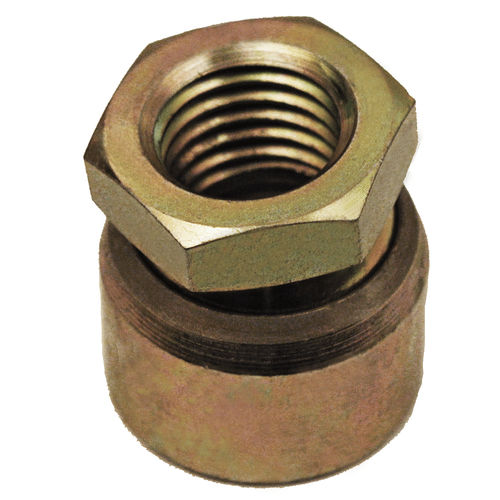

Machine foot CL-xx-SPF series
zinc-coated steelswivel

Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel
Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel
Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel - image - 2
Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel - image - 3
Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel - image - 4
Machine foot - CL-xx-SPF series - CARR LANE MANUFACTURING CO. - zinc-coated steel / swivel - image - 5
Add to favorites
Compare this product

Characteristics

Applications
machine
Material
zinc-coated steel
Type
swivel
Diameter

Max.: 1 in

Min.: 1 in

Description

Swivel Pad Feet (Steel, Zinc Plated) Supports, Rests & Feet Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 20° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA. Body > 12L14 steel, carburized-hardened zinc plated yellow chromate. Pad > 12L14 steel, zinc plated yellow chromate. DFARS and RoHS compliant.
