Electric rotary table CL-923-TRTC

tiltingfor machining centersfor machining

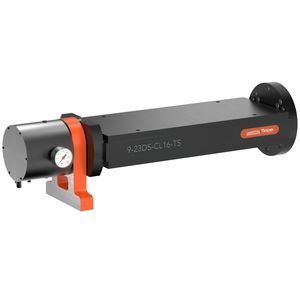

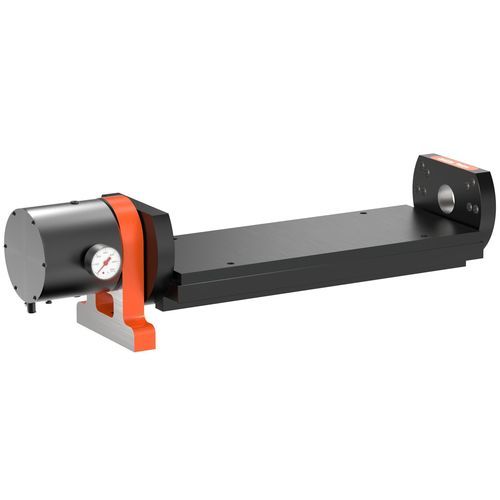

DescriptionDesigned by Carr Lane Manufacturing in collaboration with Martin Trunnion Tables, the Single-Sided Quick-Change Trunnion Table converts a standard 3-axis vertical machining center into a 3+1 or 3+2 multi-side machining system. The fixture platform increases spindle utilization and reduces handling by enabling fast fixture exchange while maintaining high precision. Supplied with one sub-plate and equipped with Headless Carr Lock® Clamps, the system supports offline loading/unloading and is compatible with tool-probe M-code routines for micron-level registration.

Features

• Converts a standard 3-axis VMC to 3+1 or 3+2 capability for multi-side prismatic machining
• Quick-change sub-plate system enables fixture exchange in under one minute
• Includes Headless Carr Lock® Clamps for fast, repeatable clamping
• Precision-machined from Class 35 cast iron for vibration damping and thermal stability
• Table flatness and squareness held within 0.001 in (0.025 mm)
• Outboard support alignment within 0.0002 in (0.005 mm) of the rotary centerline

Materials / Finishes
ITEM | MATERIAL | HEAT TREAT | FINISH
Table | Class 35 cast iron | - | Black Paint
Plate | Aluminum | - | Black Anodize

ApplicationsIdeal for aerospace, defense, medical and precision industrial applications where repeatable accuracy and throughput are critical. Supports lean, high-mix manufacturing and maximizes spindle uptime. Made in USA.

Technical specifications

• Model name: Single-Sided Quick-Change Trunnion Table (example part: CL-923-TRTC)
• Typical repeatability: ±0.001 in (±0.025 mm)
• Outboard support alignment tolerance: within 0.0002 in (0.005 mm) of rotary centerline
• Table material: Class 35 cast iron; finish: Black Paint
• Fixture plate material: Aluminum; finish: Black Anodize; supplied with one sub-plate
• Quick-change clamps included: (1) CL-16-HCLC-1 and (3) CL-16-HCLC-2 (as shipped with CL-923-TRTC)
• Example part reference: CL-923-TRTC (centerline height 6.000, plate size 22.5 x 9.0 x 0.75; includes (1) CL-923-TRTC-FP)
• Designed for offline loading/unloading to maximize spindle uptime
• Requires a 4th-axis rotary table for operation; compatible with common probing cycles to reduce repeatability to micron level
