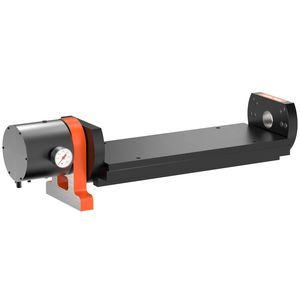

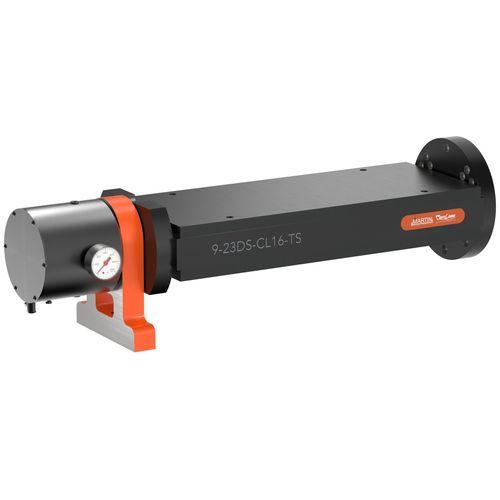

Electric rotary table CL-923DS-TRTC

tiltingfor machining centershigh-precision

Overview
Designed in partnership between Carr Lane Manufacturing and Martin Trunnion Tables, the Quick-Change Trunnion Table converts a standard 3-axis vertical machining center into a 3+1 or 3+2 system for multi-side machining of prismatic parts in a single setup. This fixture platform improves precision, reduces handling time, and increases spindle utilization for high-mix production environments.

Double-Sided Configuration
Double-sided trunnion tables include two fixture plates, allowing fixtures on opposing faces for increased part density or back-to-back operations. Both faces use Headless Carr Lock® Clamps for rapid exchanges with vises or dedicated fixtures, enabling fixture swaps in under one minute while maintaining ±0.001 inch (±0.025 mm) repeatability. Operators can load and unload parts offline while machining continues, maximizing spindle uptime. When paired with a tool probe and M-code macro, repeatability can be reduced to the micron level.

Construction & Accuracy
Each table is precision-machined from Class 35 cast iron for superior vibration damping and thermal stability. Table flatness and squareness are held within 0.001 inch (0.025 mm). Outboard support alignment is maintained within 0.0002 inch (0.005 mm) of the rotary centerline to ensure stiffness under heavy or off-center loads.

Installation & Use
Supplied with a defined height to the 4th-axis centerline (typical 6.000 in). Alternate heights are available via risers, shims, or special order. A compatible 4th-axis rotary table is required for operation.

Applications
Ideal for aerospace, defense, medical, and precision industrial applications where repeatable accuracy and throughput are critical.

Origin
Made in USA.

Material / Finish
ITEM / MATERIAL / HEAT TREAT / FINISH
Table / Class 35 cast iron / - / Black Paint
Plate / Aluminum / - / Black Anodize

Included Parts / Typical Model Data
QUANTITY / PART NO. / CENTERLINE HEIGHT / PLATE SIZE / FIXTURE PLATE (INCLUDED) / CARR LOCK CLAMPS (INCLUDED)
— / CL-923DS-TRTC / 6.000 in / 22.5 x 9.0 x 0.75 in / (2) CL-923-TRTC-FP / (2) CL-16-HCLC-1; (6) CL-16-HCLC-2

Technical Specifications

• Function: Converts 3-axis VMC to 3+1 or 3+2 multi-side machining
• Repeatability: ±0.001 inch (±0.025 mm); can be reduced to micron level with tool probe and M-code macro
• Construction: Class 35 cast iron table; fixture plates in aluminum
• Table flatness & squareness tolerance: 0.001 inch (0.025 mm)
• Outboard support alignment: within 0.0002 inch (0.005 mm) of rotary centerline
• Exchange time: fixture exchange < 1 minute using Headless Carr Lock® Clamps
• Configuration: Double-sided with two fixture plates for opposing-face or back-to-back operations
• Requirement: Compatible 4th-axis rotary table required for operation
• Finish: Table — Black Paint; Plates — Black Anodize
• Typical part reference: CL-923DS-TRTC
