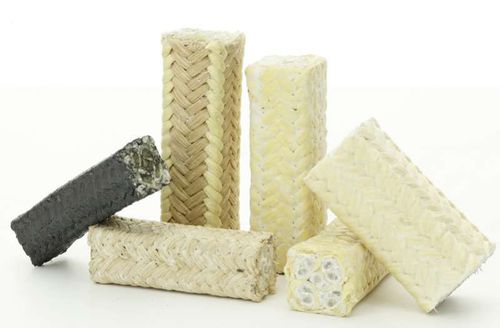

Braided PTFE packing 9001 series
aramidsynthetic yarnhigh resistance

braided PTFE packing
braided PTFE packing
braided PTFE packing
Add to favorites
Compare this product


Characteristics

Material
PTFE, aramid, synthetic yarn
Other characteristics
high resistance
Applications
high-temperature

Description

High tenacity and temperature resistant yarns Impregnation with PTFE PFOA free and special lubricant Characteristics N9001 - It is the PERFORMER pad of the WIPING PAD 9001 range made externally with special copolymer para-aramids yarns with high resistance to abrasion and at core with glass yarns. The special impregnation reduces the coefficient of friction and facilitates the wiping wire. Available also in the N9001/K style with high tenacity aramid yarns corners. K9001 - It is the PREMIUM pad of the WIPING PAD 9001 range. Core made with glass yarns, K9001 is entirely lined with high-tenacity aramid yarns. The pad is impregnated with PTFE PFOA free and lubricant to reduce friction and improve surface heat dispersion. Available in the K9001/2 style with supplementary resin dip after cutting. V9001 - It is the BASIC pad of the WIPING PAD 9001 range made with glass yarns impregnated with PTFE dispersion PFOA free and special additives. Available in the V9001/G style with graphitized surfaces. All pads are impregnated before cutting. A second resin finish applied after the cut is optionally available for each pad styles. Applications The wiping system is specifically engineered to provide a commercial grade wire coating by effectively eliminating excess zinc during the galvanization process. This system comprises a clamping mechanism that exerts pressure on two rectangular pads, through which the wire is threaded. The wire diameters typically range from 0.8mm to 8.0mm, encompassing both high and low carbon wires, with coating weights typically falling between 50g/m2 and 120g/m2.

Catalogs

No catalogs are available for this product.

See all of Carrara Global Sealing Solution‘s catalogs
