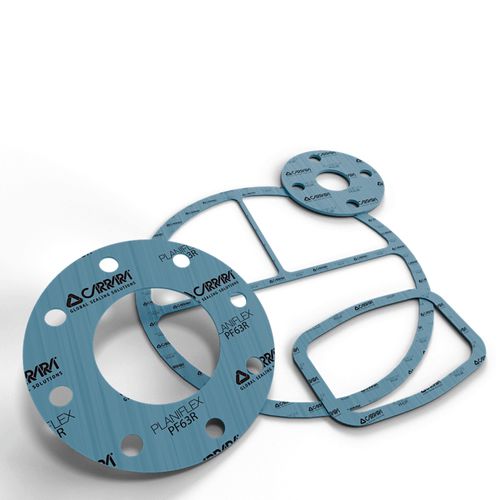

Aramid gasket sheet PLANIFLEX™ PF63RwireNBRnitrile
Add to favorites
Compare this product
Characteristics
- Material
- wire, NBR, nitrile, aramid
- Product applications
- gas, fuel
- Other characteristics
- fiber
- Temperature limit
Max.: 250 °C
(482 °F)Min.: -40 °C
(-40 °F)- Pressure limit
50 bar
(725.2 psi)
Description
Aramid fibres and NBR binder with with wire reinforcement.
Characteristics
The compressed fiber gaskets Planiflex™ PF63R are a material with an excellent sealing performance, usable with oils, gas, fuel. Planiflex™ PF63R shows excellent stress retention properties and excellent sealing performance.
Applications
Planiflex™ PF63R can be applied continuously in the temperature range -40°C÷180°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show chemical compatibility in the pH range typical of that of nitrile rubbers.
Catalogs
No catalogs are available for this product.
See all of Carrara Global Sealing Solution‘s catalogsOther Carrara Global Sealing Solution products
COMPRESSED FIBER SHEETING PLANIFLEX™
