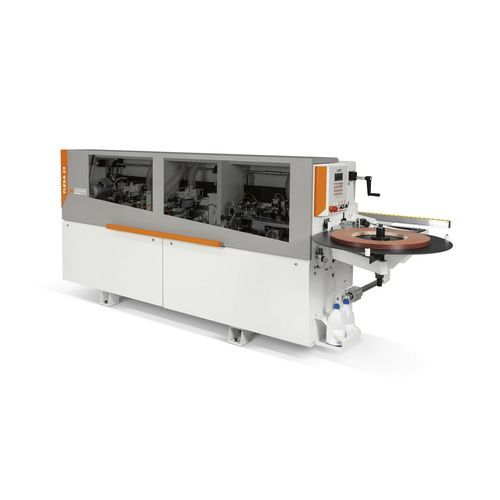

Automatic edge-banding machine FLEXA 23

for woodfor panels

Overview
The automatic edgebander FLEXA 23 is designed for craftsmen and small to medium-sized manufacturers, delivering fast setup and consistent edging results on wooden panels and components.

Key advantages

• Precision and feed control: feeding chain track system and extendable support roller conveyor ensure accurate handling of panels, including large formats.
• Edge capacity: supports edge strips up to 5 mm thick and coil up to 3 mm for versatile material use.
• Operational flexibility: optional SmartControl S touchscreen enables pneumatic on/off control of working units for simplified operation.
• Versatile finishing: rounding unit for curved or radiused finishes; glue unit with bottom-discharge tank supports both EVA and PUR adhesives.

Technical data
FLEXA 23
Panel thickness: 8 ÷ 50 mm
Maximum edge thickness (strips): 5 mm (optional)
Maximum edge thickness (coil): 3 mm
Feed speed: 9 m/min

Features / specifications

• Feeding chain track system for precision handling
• Extendable support roller conveyor for large panels
• Optional SmartControl S touch screen with pneumatic on/off management
• Rounding unit for versatile finishing
• Glue unit with bottom dischargeable tank compatible with EVA and PUR glues
