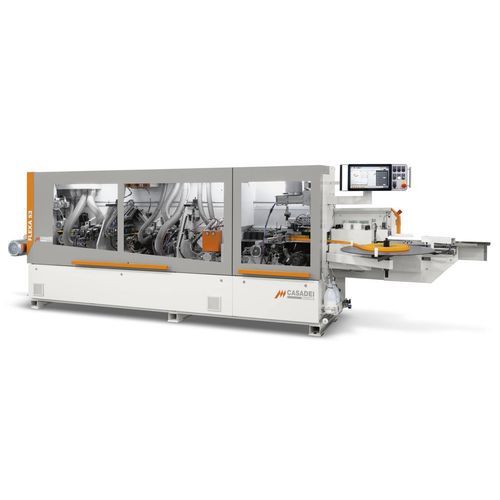

Automatic edge-banding machine FLEXA 53

for panelshigh-speed

Description
The automatic edge banding machine FLEXA 53 delivers flexible configuration and advanced technical features for accurate and efficient edge application on panels. The machine is available in a standard version and in the electronic XE version, which provides automatic positioning and axis control of the machining units.

Advantages

• Sturdiness: Steel base and a heavy-duty frame for the working units ensure dimensional stability and consistent finishing. The chain-track feed with high-adhesion sliding pads guarantees straight transport and high resistance to lateral loads.
• High productivity and finish: The Round RA/2X unit increases throughput while delivering a uniform, high-quality finish, positioning the machine at the top of its category.
• Flexibility: Multiple configurations and a wide range of optional units allow adaptation to diverse processing requirements. The Plus XE kit enables electronic control of the upper pressure unit as well as the rounding and edge-scraping modules.
• Quick tool change: The edge-scraping unit accepts interchangeable heads for fast machining changeovers and reduced downtime.

Characteristics / technical specifications

• Model: FLEXA 53
• Panel thickness: 6 ÷ 60 mm
• Max. thickness strip edging: 6 mm (12 mm optional)
• Feed speed: 12 ÷ 18 m/min
• Available in XE version with controlled axis (electronic positioning of units)
• Round RA/2X unit for high productivity and perfect finish
