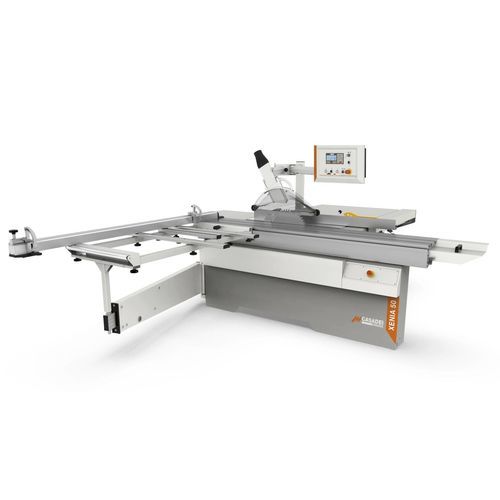

Panel saw XENIA 50

sliding tablewoodfor panels

Description
The Casadei XENIA 50 sliding table panel saw with tilting blade is designed for workshops and production lines that require high cutting quality and consistent performance. The machine is available in manual, motorized and automatic versions, with options for lifting, tilting and numerically controlled positioning of the parallel fence for precise, repeatable cuts.

Advantages

• Reliability: Prismatic guideways with preloaded ball bearings ensure smooth and precise sliding table travel. All machine frame contact surfaces are machined to guarantee planarity and long-term precision.
• Ergonomics: Controls are located on the front side within easy reach of the operator. Powered tilt and lift of the saw units enable rapid and accurate adjustments.
• Sturdiness: Robust machine frame with significant section thickness provides stability during heavy-duty cutting operations.

Technical data

• XENIA 50/3 — Max. squaring stroke (std.): 2250 mm; Cutting width on parallel fence: 1000 mm; Table dimensions: 900 x 550 mm; Max. saw blade diameter (with scoring unit): 315 mm; Saw blade speed: 4000 rpm; Max. blade projection at 90° (with ø 400 mm): 100 mm; Motor power (S6): 5 kW (50 Hz) / 6 kW (60 Hz).
• XENIA 50/4 — Max. squaring stroke (std.): 2250 mm; Cutting width on parallel fence: 1000 mm; Table dimensions: 1040 x 630 mm; Max. saw blade diameter (with scoring unit): 400 mm; Saw blade speed: 3700 rpm; Max. blade projection at 90° (with ø 400 mm): 140 mm; Motor power (S6): 7 kW (50 Hz) / 8 kW (60 Hz).
• Common: Max. scoring blade diameter: 120 mm; Scoring blade speed: 8500 rpm; Saw blade inclination: 90 ÷ 46°; Exhaust outlet diameter: 120 mm; Riving knife exhaust diameter: 60 mm; Bridge-type blade protection exhaust diameter: 80 mm; Power scoring motor (S6): 1.3 kW (50 Hz) / 1.5 kW (60 Hz).

Technical specifications

• Model: XENIA 50 (available as XENIA 50/3 and XENIA 50/4)
• Max. squaring stroke (std.): 2250 mm
• Cutting width on parallel fence: 1000 mm
• Table dimensions: 900 x 550 mm (50/3) or 1040 x 630 mm (50/4)
• Max. saw blade diameter (with scoring unit): 315 mm (50/3) or 400 mm (50/4)
• Saw blade rotation speed: 4000 rpm (50/3) or 3700 rpm (50/4)
• Max. scoring blade diameter: 120 mm
• Scoring blade rotation speed: 8500 rpm
• Saw blade inclination range: 90° ÷ 46°
• Max. blade projection at 90° (with ø 400 mm): 100 mm (50/3) or 140 mm (50/4)
• Max. blade projection at 45° (with ø 400 mm): 70 mm (50/3) or 99 mm (50/4)
• Exhaust outlet diameter: 120 mm
• Riving knife protection exhaust diameter: 60 mm
• Bridge-type blade protection exhaust diameter: 80 mm
• Main motor power (S6): from 5 kW (50/3) up to 8 kW (50/4) depending on frequency/version
• Power scoring motor (S6): 1.3 kW (50 Hz) / 1.5 kW (60 Hz)
