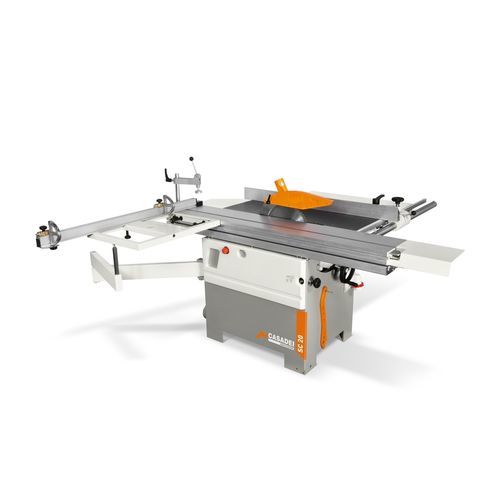

Circular saw SC 20

sliding tablewoodfor panels

Product overview
The SC 20 is a compact industrial circular saw with a tilting blade designed for crosscutting and rip cutting of panels and solid wood. The machine combines a sliding table with a tilting blade to perform angled and straight cuts while optimizing floor space.

Advantages

• Flexibility: sliding table with steel hardened guide-ways for reduced vibration and precise movement
• Ergonomics: front-mounted control panel for easy operator access
• Precision: blade tilt 90° ÷ 45° and compatibility with a scoring unit for clean edges
• Processing capacity: up to 1600 mm squaring stroke and 900 mm cutting width on the rip fence

Technical data

• Model: SC 20
• Max. squaring stroke: 1600 mm
• Cutting width on rip fence: 900 mm
• Max. diameter of saw blade with scoring unit installed: 315 mm
• Saw blade tilting range: 90° ÷ 45°
• Motor power (50 Hz): 4 kW / 5.5 Hp
• Motor power (60 Hz): 4.8 kW / 6.5 Hp
• Sliding table with steel hardened guide-ways
• Front-mounted ergonomic control panel

Applications

• Panel sizing, furniture production and joinery workshops
• Suitable for MDF, plywood, solid wood and laminated panels

Options

• Scoring unit compatibility (pre-installed or optional)
• Alternative blades, riving knife and dust extraction connection
