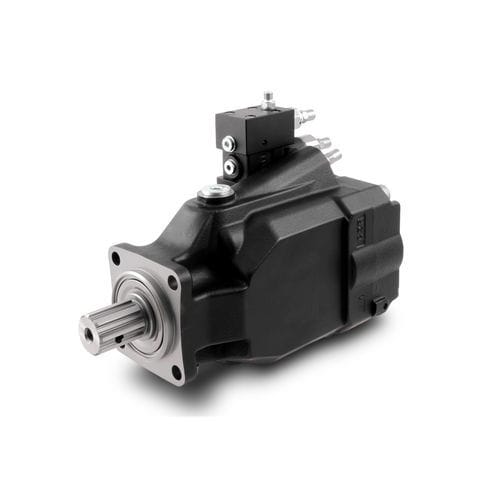

hydraulic axial piston pump / compact
TVP series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
hydraulic axial piston pump / compact hydraulic axial piston pump / compact - TVP series
{{requestButtons}}

Characteristics

  • Type:

    axial piston

  • Other characteristics:

    compact

  • Pressure:

    400 bar (5,802 psi)

Description

Features

Variable displacement axial piston pumps swash plate design ideally suited for open circuit truck applications. The compact design allows to be mounted directly on the PTOs.

Displacements from 3.66 in³/rev (60 cm³/rev) to 5.17 in³/rev (84,7 cm³/rev).
Max. peak pressure up to 5800 psi (400 bar).
Max. speed up to 3000 min-1

Pump internal drain line
Compensators external drain line
Direct mounting on the PTOs
Body width 4.8898 in (124,2 mm)
Compact design
Low noise emission
