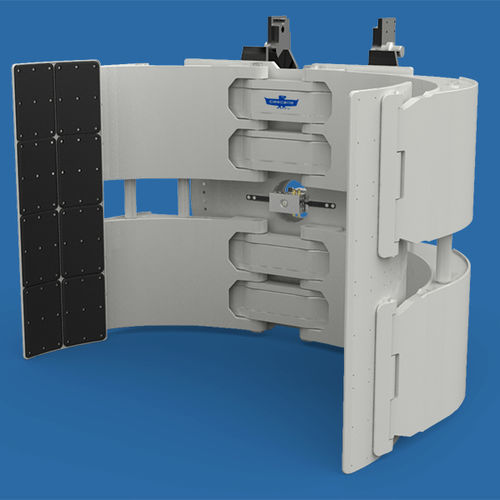

Designed for the most demanding concrete pipe and heavy paper roll operations, the 70H-120H Pivot Arm Roll Clamps are designed for lifting extremely heavy loads. The 70H-120H represents a 7-12 ton metric rating and replaces the imperial F model numbers. Field tested and application rated these clamps have maximum capacity ratings ranging from 12,000 lbs to 26,400 lbs with maximum roll diameters up to 105”.
Features
• Heavy duty arm & frame structure modeled after proven roll clamp design.
• Dual rotator drive boxes
• Heavy duty 220D & 400D rotators depending on model
• Thin-frame profile increases truck capacity
• Protected hydraulics
• Easy to service cylinders in standard sizes
• Continuous 360° rotation
Options
• AFC (Adaptive Force Control) for automatic control of clamping pressure that changes as load weight changes (includes Load Cushion™).
• Tilt Control automatically controls the angle of the mast and pad, aligning the pad with the roll and eliminating expensive product damage.
• 180° hydraulic stop group.
• Load Cushion™—hoist system accumulator that absorbs shocks, reducing the clamp force required to handle the load.
• Electrical Pressure relief system allowing driver to change pressure relief settings electronically from the cab.
