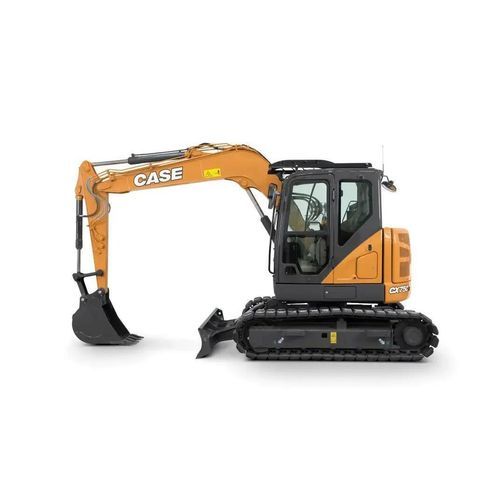

Midi excavator CX75C SR

crawlerTier 4 - finaldiesel

Product overview
The CASE CX75C SR is a compact short-radius midi excavator designed for operation in confined sites such as roadsides and alongside structures. It offers a choice of offset or standard boom, precise control and fast cycle times for trenching, loading and light demolition tasks.

Quick specs

• Model: CX75C SR
• Horsepower: 53.6 hp | 40 kW
• Operating weight: 17,400 lb | 7,900 kg
• Breakout force: 12,800 lb

Walkaround
Key design elements include a short-tail radius, generous breakout force, adjustable operator station and service access points positioned for routine maintenance and inspection.

Standard equipment

• ENGINE
  • Isuzu four-cylinder turbocharged diesel
  • Tier 4 Final certified
  • Color LCD monitor
• HYDRAULICS
  • ISO-pattern controls
  • 5,000-hour hydraulic oil change interval
  • 1,000-hour hydraulic filter change interval
  • Mechanical disc brakes
  • Three selectable work modes
• UPPER STRUCTURE
  • Right and left side mirrors
  • Viscous-mounted cab (fluid)
  • Common-key vandal locks
  • Upper and cab-mounted 70 W work lights
  • Swivel guard belly pan
• OPERATOR ENVIRONMENT
  • Mechanical-suspension cloth seat
• UNDERCARRIAGE
  • 1 ft 6 in (450 mm) steel shoes, triple semi-grouser
  • Full overlap turntable bearing tub
  • Front track chain guides and hydraulic track adjustment
  • X-pattern carbody
• FRONT DOZER BLADE
  • Hydraulically controlled, 7 ft 7 in (2.32 m) width × 1 ft 6 in (450 mm) height

Optional equipment

• HYDRAULICS
  • Multi-function auxiliary hydraulics (standard broom / offset boom configurations)
• UNDERCARRIAGE
  • 23.6 in (600 mm) steel shoes, triple semi-grouser (optional)
  • 450 mm rubber pads bolted to standard rail
• OPERATOR ENVIRONMENT
  • Control pattern selector
  • FOPS cab top guard – Level 2
  • Front grill and rock guards (various configurations)

Technical specifications

• Manufacturer / Brand: CASE
• Model: CX75C SR
• Engine: Isuzu four-cylinder turbocharged diesel
• Emission certification: Tier 4 Final
• Power: 53.6 hp | 40 kW
• Operating weight: 17,400 lb | 7,900 kg
• Breakout force: 12,800 lb
• Design: Compact short-radius for confined-space operation
• Boom options: Offset or standard
• Hydraulic controls: ISO pattern
• Hydraulic intervals: 5,000-hour oil / 1,000-hour filter
• Brakes: Mechanical disc brakes
• Work modes: Three selectable settings
• Cab: Viscous-mounted with adjustable seat
• Undercarriage: 450 mm steel shoes standard; optional 600 mm shoes
• Front blade: Hydraulically controlled, 2.32 m width × 450 mm height
