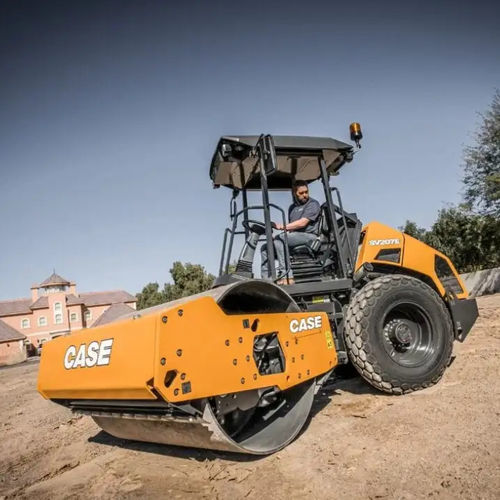

Vibratory road roller SV207E

articulated

Product Description
The CASE SV207E is a compact single-drum vibratory compactor built for versatility on construction sites. Its smaller-diameter drum and compact footprint improve maneuverability and simplify transport while maintaining high compaction capability. The machine features dual amplitude and dual frequency vibration modes with auto vibration control and delivers best-in-class centrifugal forces approaching 30,000 lb. The operator station includes a fully integrated control lever, a rotating seat and an iso-mounted platform to reduce vibration transmission and increase operator comfort. Daily service points are easily accessible to reduce downtime.

Quick Specs

• Horsepower: 75 hp | 55.4 kW
• Operating Weight: 15,400 lb | 6,990 kg

Standard Equipment

• ROPS and FOPS protection
• Hydrostatic drive for both drum and wheels
• Front and rear tow points
• Remote fluid drains
• Auto vibration control
• Dual amplitude vibration
• Dual frequency vibration

Optional Equipment

• Automatic Traction Control (ATC) — Standard on Padfoot models
• Leveling Blade
• Padfoot shell kit with scrapers
• Pressurized cab with heat, ventilation, air conditioning and radio ready (antenna and 2 speakers/no radio)
• ACI Eco - Analog Compaction Indicator
• ACE Force Intelligent Compaction (Cab only)
• ACE Force Printer (Cab only)
• myCASEConstruction – includes hardware and a 7-yr Advanced data subscription

Warranty

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty
• Purchased Protection Plan available (extension of factory base and extended coverage; plans available up to six years / 7,500 hours on CASE Compaction Equipment)

Technical Specifications

• Model: SV207E
• Engine power: 75 hp (55.4 kW)
• Operating weight: 15,400 lb (6,990 kg)
• Vibration: Dual amplitude and dual frequency; auto vibration control
• Centrifugal force: Best-in-class forces up to nearly 30,000 lb
• Drive: Hydrostatic drive for both drum and wheels
• Cab: Fully integrated control lever, rotating seat, iso-mounted platform; optional pressurized HVAC cab
• Serviceability: Easy access to daily service check points
• Tow points: Front and rear tow points
• Optional systems: Automatic Traction Control (ATC), ACI Eco, ACE Force Intelligent Compaction and printing, myCASEConstruction telematics
