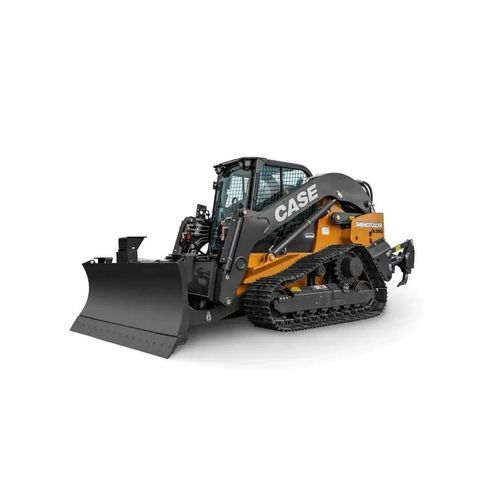

Compact track loader Minotaur™ DL550

Overview
Here’s a species that’s unlike any other. It’s the CASE Minotaur™ DL550. True, this beast has the silhouette of a compact track loader. But you’ll see it’s packed full of pure, dozer DNA. For proof, check out the numbers: 114 hp; more than 25,000 lbs. of drawbar pull; more than 12,000 lbs. of breakout force; and 5,500 lb. rated operating capacity (50 percent of tipping load). With that kind of muscle, along with the integrated C-frame dozer blade, standard enhanced high-flow hydraulics and skid steer-style coupler, operators can easily switch out attachments, use larger buckets and power larger implements. There are dozer-style controls and grips, along with the ability to switch to ISO controls. Optional integrated rear ripper available. Three track options including two steel track widths. Optional ride-smoothing EZ Trac available. Load. Doze. Dominate.

Quick specs

• Horsepower: 114 hp | 85 kW
• Operating Weight: 18,600 lb | 8 444 kg

Standard equipment
Operator environment

• Enclosed cab (ROPS/FOPS Level 1)
• Heater and air conditioner

Hydraulics

• Auxiliary hydraulics
  • @ 3,450 psi (238 bar) – 24.2 gpm (91.5 L/min)
• High-flow auxiliary hydraulics
  • @ 3,450 psi (238 bar) – 41.6 gpm (157 L/min)
• Enhanced High-Flow auxiliary hydraulics – EHF
  • @ 4,100 psi (283 bar) – 41.6 gpm (157 L/min)
• Auto Ride Control
• Creep Speed Mode

Blade

• 52° - 60° variable pitch; with integral adjustment tool
• Single lever control for blade lift, angle and tilt

Precision blade guidance

• Blade Guidance Ready

Loader

• Hydraulic attachment coupler
• Vertical lift geometry
• Loader lift arm support pin

Undercarriage

• Heavy Duty Steel Tracks
• Sealed and Lubricated Track Chain (SALT)

Telematics

• MyCASEConstruction Telematics – Includes hardware and 7-Year data subscription
• SiteConnect Module providing remote diagnostics capability

Optional equipment
Operator environment

• Open Cab (ROPS/FOPS Level 1) with side screens; Keyed Start
• Mechanical Suspension Seat - Vinyl
• Demolition cab door with polycarbonate

Rear mounted equipment

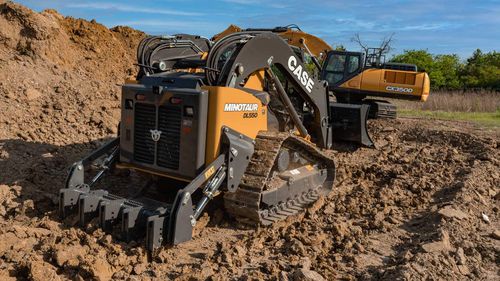

• Ripper - 5 position with 3 shanks
• Replaceable Ripper Teeth
• Drawbar

Warranty

• 1-year/unlimited-hour full-coverage base limited warranty
• 2-year/2,000-hour full-coverage base limited warranty
• 2-year/2,000-hour extended limited engine warranty

Technical specifications

• Model: Minotaur™ DL550
• Rated operating capacity: 5,500 lb (50% of tipping load)
• Horsepower: 114 hp | 85 kW
• Operating weight: 18,600 lb | 8 444 kg
• Drawbar pull: more than 25,000 lbs
• Breakout force: more than 12,000 lbs
• Integrated C-frame dozer blade, six-way blade functionality
• Blade variable pitch 52°–60° with integral adjustment tool
• Single-lever blade lift/angle/tilt control; dozer-style controls with ISO option
• Standard and enhanced high-flow hydraulics (see hydraulics section for flows/pressures)
• Auxiliary hydraulic options: 24.2 gpm @ 3,450 psi (91.5 L/min @ 238 bar) and 41.6 gpm @ 3,450 psi (157 L/min @ 238 bar)
• Enhanced High-Flow (EHF): 41.6 gpm @ 4,100 psi (157 L/min @ 283 bar)
• Auto Ride Control and Creep Speed Mode available
• Hydraulic attachment coupler; skid steer-style coupler
• Vertical lift geometry
• Loader lift arm support pin
• Undercarriage options include heavy duty steel tracks and sealed & lubricated track chain (SALT)
• Three track options including two steel track widths
• Optional integrated rear ripper (5-position with 3 shanks)
• Replaceable ripper teeth option
• Optional ride-smoothing EZ Trac
• Telematics: MyCASEConstruction with hardware and 7-year subscription; SiteConnect module for remote diagnostics
