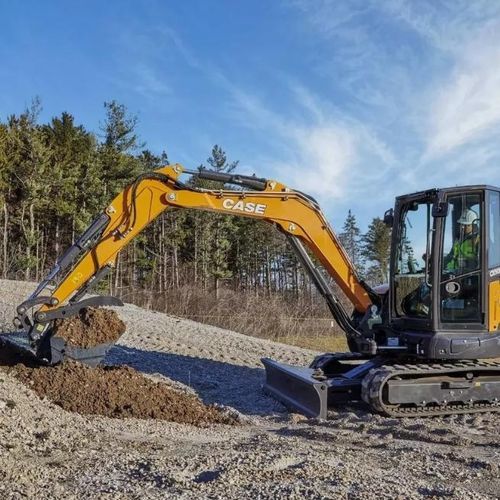

Mini-excavator CX50D

crawlerdieselcompact

Overview
The CASE CX50D is a 5.0‑metric‑ton mini excavator designed for tight‑space operation with a zero tail swing upper structure. It combines compact exterior dimensions with class‑leading hydraulics and attachment compatibility to support a wide range of construction and utility tasks. The cab offers automotive‑style comfort and an intuitive 7‑inch LCD for machine data.

Key features

• Zero tail swing upper structure for close‑quarters work near buildings and structures
• Perkins 404J engine delivering 58.7 hp (43.8 kW)
• Standard auxiliary hydraulics (1st auxiliary): selectable 1‑ or 2‑way operation from control panel; optional 2nd auxiliary (2‑way)
• Enclosed ROPS/FOPS cab with heat and A/C (automatic climate control available); sliding right‑side window and overhead front opening window
• 5‑way adjustable mechanical suspension seat with automatic weight control (standard); optional pneumatic fabric seat
• Bluetooth radio and 7‑inch LCD display for operating data and diagnostics
• Rubber belt tracks standard; optional steel tracks available
• 2‑speed travel (turtle & rabbit) with auto‑shift; fully hydrostatic drive; sealed/lubricated track rollers; hydraulic track tensioner with grease adjustment
• LED light under boom and LED strip on engine cover; optional cab‑top LED work lights and rotating beacon
• Standard counterweight; optional additional or heavy counterweights available
• Standard attachments: mechanical coupler, digging buckets, hydraulic coupler, thumb; optional long arm (1.75 m)

Walkaround / Visual
Interactive walkaround highlights key components and service points to aid inspection, maintenance planning and specification comparison for compact jobsite applications.

Brochure and specifications (available)
Detailed brochures and a dedicated CX50D specifications sheet are available for download; consult supplied documents for full dimensions, performance curves and options listing.

Technical specifications

• Model: CX50D
• Operating weight: 10,912 lb | 4,950 kg
• Horsepower: 58.7 hp | 43.8 kW
• Engine: Perkins 404J
• Cab: ROPS/FOPS enclosed cab with heating and A/C (automatic climate control optional); sliding side window; overhead opening front window
• Seat: 5‑way adjustable mechanical suspension seat with automatic weight control (standard); fabric pneumatic seat optional (cab only)
• Hydraulics: Standard 1st auxiliary (1‑ or 2‑way), optional 2nd auxiliary (2‑way); control pattern selector valve; cylinder guards on boom and dozer blade cylinder
• Track drive: Rubber belt tracks standard; optional steel tracks; 2‑speed travel with auto‑shift; fully hydrostatic drive
• Lighting: LED under boom and LED strip on engine cover; optional additional LED lighting
• Upper structure: Zero tail swing (with standard counterweight)
• Warranty: 2‑Year / 3,000‑Hour Full Machine Limited Warranty
