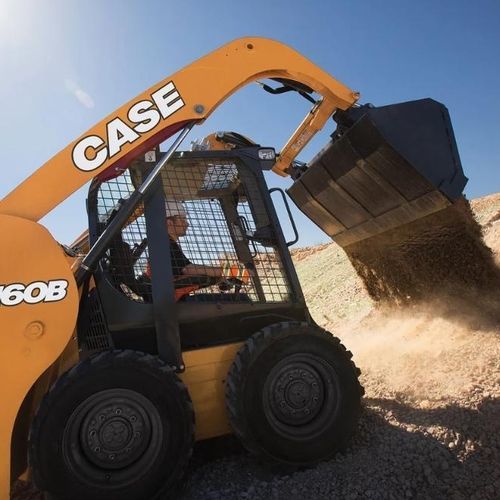

Electro-hydraulic skid steer loader SR160B

Overview
The CASE SR160B is a construction-grade skid steer designed for compact job sites. It delivers a low total cost of ownership, easy transportability and operator-focused controls. Weighing approximately 5,645 lb and standing just over 6 ft in height, it fits behind a 60 in. bucket for simplified transport and storage. The 8-in. LCD display provides machine data and rear-view camera access for improved visibility.

Quick specifications

• Horsepower: 60 hp | 44.7 kW (Gross)
• Rated Operating Capacity (50% of tipping load): 1,600 lb | 726 kg
• Weight (approx.): 5,645 lb
• Transport / fit note: just over 6 ft. in height; fits behind a 60 in. bucket

Standard equipment

• Operator environment
  • ROPS / FOPS Level 1 canopy with side screens
  • Rear window with emergency escape
  • Rearview mirror
• Engine
  • Perkins/ISM N844LT-F-45SL diesel
  • 135.2 CID (2.2 L) Turbo, Tier 4 Final certified
  • Spark arresting diesel particulate filter (DPF) muffler
  • Charged Air Cooler (CAC); indirect fuel injection
  • Horsepower: Gross 60 hp (44.7 kW); Net 57 hp (42.4 kW)
  • Peak torque: 139 lb·ft (188 N·m)
• Hydraulics
  • Auxiliary hydraulics: @ 3,050 psi (210 bar) – 18.4 gpm (69.7 L/min)
• Loader
  • Manual attachment coupler
  • Radial lift geometry
• Other standard features
  • LED lights – 2 front, 2 side, 2 rear flood
  • Block heater
• Telematics
  • myCASEConstruction – includes hardware and a 7-year data subscription
  • SiteConnect Module providing remote diagnostics capability

Optional equipment

• Operator environment
  • AM / FM Bluetooth radio with 2 speakers
  • Deluxe cloth, air suspension seat with heater and lumbar support
• Hydraulics
  • Hydraulic one-way self-leveling
• Loader
  • Hydraulic attachment coupler
• Factory supplied attachments
  • Rotating beacon
• Service parts
  • Add-on counterweights

Warranty

• 1-Year / Unlimited-Hour Full-Coverage Base Warranty
• 2-Year / 2,000-Hour Full Coverage Base Limited Warranty
• 2-Year / 2,000-Hour Extended Limited Engine Warranty
• Engine warranty covers internal lubricated parts between valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump

Technical specifications

• Model: SR160B
• Brand: CASE
• Operating weight (approx.): 5,645 lb
• Overall height: just over 6 ft (approx.)
• Transport/fit: fits behind a 60 in. bucket
• Engine: Perkins/ISM N844LT-F-45SL diesel, 135.2 CID (2.2 L) Turbo, Tier 4 Final
• Horsepower: Gross 60 hp (44.7 kW); Net 57 hp (42.4 kW)
• Peak torque: 139 lb·ft (188 N·m)
• Rated operating capacity (50% tipping load): 1,600 lb | 726 kg
• Auxiliary hydraulics: @ 3,050 psi (210 bar) – 18.4 gpm (69.7 L/min)
• Lift geometry: Radial lift
• Attachment coupler: Manual (standard); hydraulic (optional)
• Standard lighting: LED – 2 front, 2 side, 2 rear flood
• Display: 8-in. LCD with machine data and rear-view camera access
• Telematics: myCASEConstruction hardware with 7-year data subscription; SiteConnect remote diagnostics module
• Emissions / exhaust controls: Spark arresting DPF muffler
• Other standard features: Block heater
