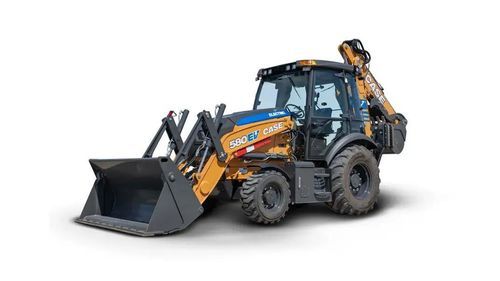

Rigid backhoe loader 580EV

electric

Overview
The 580EV is the world’s first production electric backhoe loader designed for urban, municipal and utility job sites. It matches the hydraulic performance and capabilities of diesel machines while delivering zero on-site emissions, instant electric torque, reduced noise and lower daily operating costs for fleets and contractors.

Quick specs

• Battery capacity: 72.7 kWh
• Operating weight: 19,947 lb | 9,048 kg

Walkaround
The 580EV provides backhoe and loader performance comparable to its diesel counterpart, retaining hydraulic breakout forces and lift capability. Electric drive offers instant torque, quieter operation and simplified routine maintenance, making it suitable for noise-sensitive or emission-restricted worksites.

CASE EV Care
Dedicated EV Care program with maintenance support and technician services tailored to CASE electric innovations, including battery and electric powertrain service pathways for the 580EV.

Standard equipment
OPERATOR ENVIRONMENT

• ROPS/FOPS certified two-door protective cab with heating and A/C
• Keyless start ignition
• 8-inch color touchscreen side display plus front display; mode settings; user access levels and operator codes; machine settings
• Premium air suspension heated seat with 3-inch seat belt
• Defroster, door-activated dome light
• Lighting: 4 front, 4 rear and 2 adjustable side LED lights
• Floor mat, tinted glass, Bluetooth radio, front and rear wiper
• Speed-selectable Auto Ride Control
• Comfort Steering with two-speed steering pump and 3rd/4th gear cutout

LOADER

• Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
• Bucket position indicator; lifting lugs and tie-downs on standard bucket; single-lever control

BACKHOE

• Power Lift
• Power Boost
• Extendahoe®
• Selectable 1-way/2-way auxiliary backhoe hydraulics for hammers/plate compactors or thumbs, augers and similar 2-way attachments

OTHER

• Forward-tilt engine hood
• Adjustable LED working/driving lights — 4 front, 2 side, 4 rear
• 4-corner multi-colored/pattern LED strobe lights

TELEMATICS

• myCASEConstruction – includes hardware and a 7-year Advanced data subscription

WARRANTY

• 3-Year / 3,000-Hour battery and EV components warranty (battery, motors, inverters, etc.)
• 3-Year / 3,000-Hour EV Care Maintenance Program

Optional equipment
LOADER

• Hydraulic front quick coupler
• Additional tools and attachments available

Notes
The 580EV emphasizes comparable hydraulic breakout forces and loader/backhoe capability to diesel machines while delivering the operational benefits of battery-electric power: zero on-site emissions, instant torque and lower jobsite noise.

Technical specifications

• Model: 580EV
• Power source: battery-electric
• Battery capacity: 72.7 kWh
• Operating weight: 19,947 lb | 9,048 kg
• Zero on-site emissions (battery-electric operation)
• Instant torque and reduced jobsite noise versus diesel
• Operator cab: ROPS/FOPS certified two-door cab; heating; A/C; keyless start; 8" color touchscreen side display; premium air suspension heated seat
• Lights: multiple LED work lights (front/side/rear) plus 4-corner strobe options
• Loader hydraulics: auxiliary hydraulics with thumb-operated proportional control; bucket position indicator
• Backhoe features: Power Lift, Power Boost, Extendahoe®, selectable 1-way/2-way auxiliary flows
• Telematics: myCASEConstruction hardware with 7-year Advanced data subscription
• Warranty: 3-Year / 3,000-Hour battery & EV components; 3-Year / 3,000-Hour EV Care program
