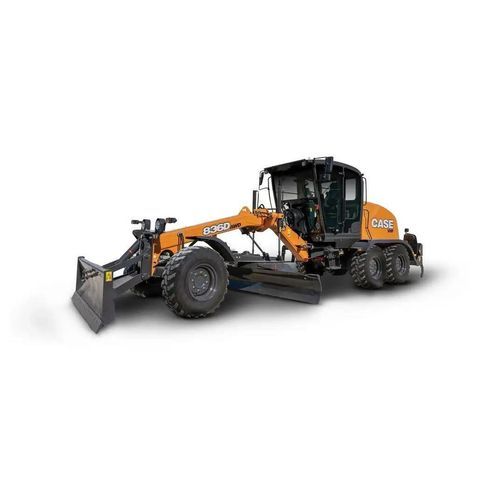

Construction motor grader 836D

rough terrainoutdoor

Product Overview
The CASE 836D motor grader is designed for small to mid-sized applications such as residential site preparation, snow removal and municipal work. This model features a 137 hp (102 kW) engine with Variable Horsepower Technology, providing optimized power and torque curves for varying tasks. Available with responsive electro-hydraulic controls and either 4WD or AWD. Front articulation improves maneuverability near structures and in confined areas. The cab offers an 8” touchscreen display, joystick controls and an intuitive operator experience.

Quick Specs

• Horsepower: 137 hp | 102 kW
• Operating Weight: 26,495 lb | 12 018 kg

Standard Equipment
Operator Environment

• ROPS/FOPS cab SAE J231, ISO 3449
• Cab with two fully swinging doors for side access, tinted safety glass, front and rear sunshields, openable front windows
• Air suspension seat with 3 in (76 mm) retractable seat belt and movable armrests

Engine

• F4HFE6133*B003 NEF 6 cyl. CR TAA 4V turbocharged diesel
• Tier 4 Final Certified
• Temperature-controlled cooling fan
• SCR only exhaust gas after-treatment
• Cold start capability down to -19°C

Drivetrain

• Powershift transmission with 6 Forward and 3 Reverse speeds with integrated torque converter
• Hydrostatic front wheel drive D.C.V.
• Electronic Drive Control Volume and hydraulic differential – FWD version only
• Internal gearing with covered, backlash-free and maintenance-free slewing ring operation on 360°
• Hydrostatic power steering
• Circle drive without overload clutch
• Rear axle with automatic/manual gear shifting
• Transmission with automatic/manual gear shifting

Hydraulics

• Closed center, load sensing hydraulic system
• 10 section control valve
• Hydraulic moldboard side shift and pitch
• 5-position saddle
• 11 ft x 20.7 in (3 355 x 526 mm) moldboard
• 8 hydraulic diagnostic quick couplers
• Front and rear piping for hydraulic attachment
• Moldboard support (no scarifier)
• Hydraulic circle turn – 360°
• Hydraulic system lock valves for blade lift, blade shift, front wheel lean, blade pitch, articulation and special equipment (scarifier and rear ripper optional)
• Lock valve lift cylinder blade

Optional Equipment
Moldboards

• 8 ft x 20.7 in (2 440 x 526 mm), single radius curve
• 10 ft x 20.7 in (3 050 x 526 mm), single radius curve
• Extensions – 2 ft (610 mm)
• Front Float Control
• Moldboard Float Control – Hydraforce/ HF22484-03
• Lift cylinder/side shift accumulators
• Lift cylinder accumulators
• Moldboard with overload clutch
• Moldboard side plates left / right

Operator Environment (optional)

• Rear windshield washer
• Air conditioning
• Air suspension seat, heated, movable arm rests

Attachments

• Front pull hook
• Front counterweight – 1,124 lb (510 kg)
• Rear counterweight – 330.7 lb (150 kg)
• Front dozer blade
• Moldboard scarifier
• Moldboard ripper
• Front push plate
• Front support and lift cylinder
• Rear ripper with 3 or 5 teeth with or without protective device

Warranty

• Three-year, 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription

Specifications / Technical Data

• Model: 836D Motor Grader
• Engine: F4HFE6133*B003 NEF 6 cyl. CR TAA 4V turbocharged diesel
• Power: 137 hp | 102 kW
• Operating Weight: 26,495 lb | 12 018 kg
• Emission: Tier 4 Final; SCR only exhaust after-treatment
• Transmission: Powershift, 6 Forward / 3 Reverse with integrated torque converter; automatic/manual gear shifting available
• Drive: Hydrostatic front wheel drive D.C.V.; 4WD or AWD options available
• Moldboard: Standard 11 ft x 20.7 in (3 355 x 526 mm); optional 8 ft or 10 ft single radius curves; 2 ft extensions available
• Hydraulics: Closed center, load sensing; 10 section control valve; 8 diagnostic quick couplers; hydraulic circle turn 360°
• Cab / Controls: ROPS/FOPS cab, two fully swinging doors, tinted safety glass, openable front windows, air suspension seat, 8” touchscreen display, joystick controls
• Cold start capability: down to -19°C
• Optional accessories: counterweights, front dozer blade, scarifier, rear ripper, front push plate, accumulators and moldboard float controls
• Warranty: 3 years / 3,000 hours full-machine factory warranty; 7-year myCASEConstruction subscription
