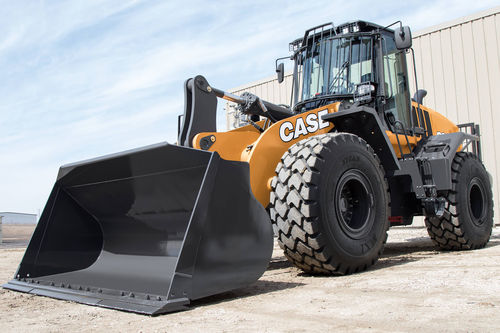

Wheeled loader 821G

articulatedfor construction

Overview
The CASE 821G wheel loader is a medium‑heavy construction machine designed for high productivity in earthmoving, material handling and quarry applications. It combines a 230 hp (172 kW) Tier 4 Final engine with a durable drivetrain to deliver strong breakout forces and high travel speeds on site.

Key specifications

• Model: 821G
• Brand: CASE
• Power: 230 hp (172 kW)
• Operating weight: 42,414 lb (19,239 kg)
• Transmission: 4F/3R selectable autoshift / manual shift

Operator environment

• ROPS cab with HVAC and ergonomic layout
• 8" LCD touchscreen display with programmable buttons and adjustable armrest
• Fully adjustable suspension seat with headrest (optional heated cloth suspension seat)
• AM/FM Bluetooth radio and radio‑ready wiring with USB and 12 V auxiliary power

Engine & drivetrain

• CASE / FPT F4HFE613S engine, Tier 4 Final, SCR with Diesel Oxidation Catalyst
• Torque converter with electronic control module for proportional shifting
• Single lever electronic shift control, F/N/R switch and downshift button

Hydraulics

• Adjustable electro‑hydraulic (EH) loader control with one auxiliary function and 3 configurable buttons
• EH Parallel Lift and Ride Control™
• Locking hydraulics for hydraulic coupler

Electrical & lighting

• Integrated 4‑corner strobe and multiple working lights (halogen and LED stop/tail lights)
• Front driving headlights with high/low beam and integrated turn signals

Telematics & warranty

• myCASEConstruction hardware with 7‑year Advanced data subscription
• Factory warranty: 3 years or 3,000 hours full‑machine

Optional equipment

• XR extended reach boom
• Attachment auxiliary hydraulics and JRB or ACS coupler systems
• External heated mirrors, front LED driving/headlights, Michelin SnoPlus tires

Applications

• Construction and infrastructure projects
• Quarry and aggregate handling
• Recycling and material processing sites

Technical specifications (highlights)

• Engine model: CASE / FPT F4HFE613S
• Power: 230 hp | 172 kW
• Operating weight: 42,414 lb | 19,239 kg
• Transmission: 4F/3R selectable autoshift / manual shift with ECM
• Hydraulics: Adjustable EH control, Ride Control™, EH Parallel Lift
• Cab: ROPS with HVAC, 8" touchscreen, configurable controls
