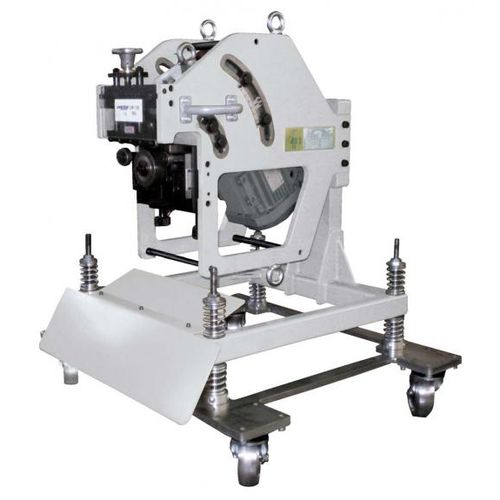

Electric chamfering machine CHP 12 G REV

mobileplatewith adjustable angle

2 in 1 high performance bevelling machine, fast reverse beveler perfect for controlled activity cycles. The beveling machine CHP 12 G REV provides flexibility and security to achieve the shortest lead time and optimum cost for a machine made to bevel fast, with no need for turning plates All-in-one technologies: 2.6 m/min speed, self-feed, bevel angle adjustment, reverted positions for upside-down bevels avoiding turning plates over, easy set up and use, no supervisory control whilst beveling work. Benefits of reversible shearing cutting bevelling machine CHP 12 G REV: - Ergonomics: designed to fulfill any bevel needs at any angle. - Flexible: optimum idealfor wide platesdimension beveling, suited also suited for small sheets and tubes. - Robustness for high productivity. - All in 1 automated beveler. - Easy to set-up and operate. Performances - Speed: 2.6 m/min - Maximum bevel in one run: 12 mm* - Maximum bevel recommended in several runs: 17 mm* - Maximum recommended thickness: plates and tubes up to 20 mm - Nominal thickness: plates and tubes from 6 mm to 30 mm - Plate beveling: width min. 55 mm (for smaller width, please consult) - Tube bevelling: Ø min. int.100 mm - Disc bevelling: Ø min. 350 mm * Dimensions calculated on 400 Mpa steel, bevel length
