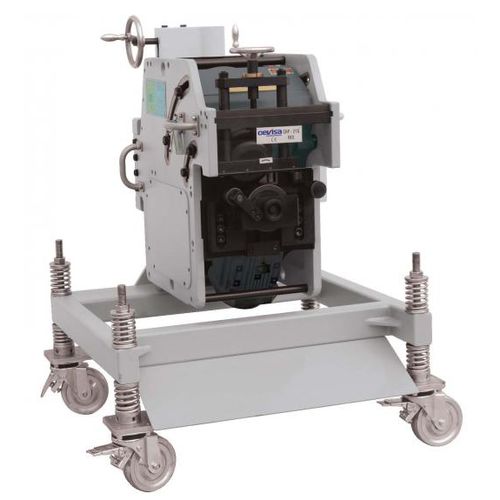

Electric chamfering machine CHP 21 G REV

mobileplatewith adjustable angle

The beveling machine CHP 21 G REV combines2 machines in 1, CHP 21 G & CHP 21 G INV. In less than 1 minute, you can turn it over to bevel in a standard or upside down position depending on your beveling requirements. Thanks to its design, you can bevel edges in X, Y, K or V in a very short time without any intermediary or dangerous work turning plates. This high performing and flexible CHP 21 G REV beveling machine will meet all your demandsfor ergonomic and intensive work. It is easy to use thanks to its simple set-up, self-feed chamfering, quick change position and bevel speed. Optimum Productive Flexibility guaranteed for wider optimization of welding preparation process&quick return on investment. Benefits of reversible shearing cutting bevelling machine CHP 21 G REV - Efficiency: 2 in 1 for upside-down bevels without turning any plates - Flexibility: adapted for any kind of heavy chamfer work - Optimization: self-feed and high speed 1.7m/min Performances - Maximum bevel in one run: 20 mm* - Maximum bevel recommended in several runs: 28 mm* - Maximum recommended thickness: plates and tubes up to 40 mm - Nominal thickness: plates and tubes from 9 mm to 50 mm - Angle variation: from 20° to 45° - Plate beveling: width min. 70 mm - Tube bevelling: Ø min. int.100 mm - Disc bevelling: Ø min. 350 mm * Dimensions calculated on 400 Mpa steel, bevel length.
