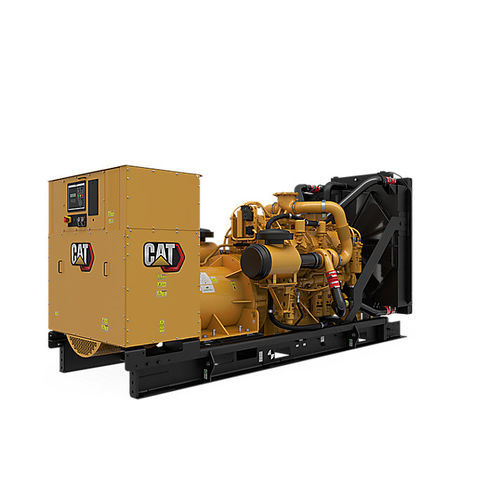

Diesel generator set C27

three-phasestationary60 Hz

The C27 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 635 to 800 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to take on 100 percent rated load in one step. The C27 is certified as a low fuel consumption system as well as having a certificate for EPA Stationary Emergency (Tier 2). Benefits Field population 250,000 in service Proven performance in heavy-duty applications Integrated Cat Control system Designed to match engine and alternator performance Accepts 100% Block load in 1 step Can handle large loads without affecting operations FEATURES AT A GLANCE CAT GENERATOR SET PACKAGE .Cat generator set packages have been fully prototype tested .Accepts 100% block load in one step and meets NFPA 110 loading requirements .Conform to ISO 8528-5 steady state and transient response requirements CAT DIESEL ENGINE .Reliable, rugged, durable design .Field-proven in thousands of applications worldwide .Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight SR5 ALTERNATOR .Superior motor starting capability minimizes need for oversizing alternator .Designed to match performance and output characteristics of Cat diesel engines .Robust Class H insulation EMCP 4 CONTROL PANEL .User-friendly interface and navigation .Scalable system to meet a wide range of installation requirement .Expansion modules and site-specific programming for specific customer requirements
