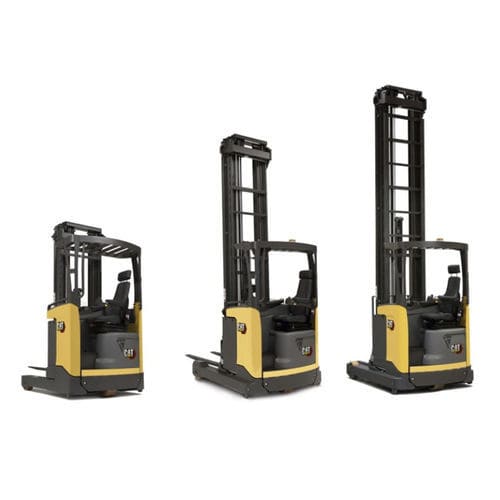

Battery-powered reach truck NR16-25N3(H)(X)
side-facing seatedfor warehouseheavy-duty

battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
Add to favorites
Compare this product


Characteristics

Motor type
battery-powered
Operator
side-facing seated
Applications
for warehouse
Other characteristics
high-performance, high-speed, heavy-duty
Carrying capacity

1,600 kg, 2,000 kg, 2,500 kg
(3,527.4 lb, 4,409.2 lb, 5,511.6 lb)

Overall width

1,270 mm, 1,397 mm
(50 in, 55 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Max.: 5,200 kg
(11,464 lb)

Min.: 3,590 kg
(7,914.6 lb)

Height to top of overhead guard

2,205 mm
(86.8 in)

Seat height

1,153 mm
(45.4 in)

Fork carriage width

830 mm
(32.7 in)

Ground clearance at center of wheelbase with load

70 mm
(2.8 in)

Travel speed

12 km/h, 14.3 km/h, 14.5 km/h
(7.5 mph, 8.9 mph, 9 mph)

Lifting speed

Max.: 0.8 m/s
(2.625 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Lowering speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Rated drawbar pull

0.2 N

Gradeability

Max.: 19.6 %

Min.: 6.1 %

Rated output

7.2 kW
(9.8 hp)

Maximum operating pressure

150 bar
(2,175.6 psi)

Oil flow

25 l/min
(6.6 us gal/min)

Noise level

60.8 dB

Description

Ergonomically and comfortably equipped for long hours in the driving seat, our NR-N3 reach trucks add further choices to an already extensive Cat® reach truck line-up. The ergonomic, high-performing, efficient and durable qualities of these six NR16-25N3H(X) reach truck models will boost your warehouse operation’s profits by raising and sustaining productivity while reducing downtime costs. For a comfortable, tailored fit, the armrests and even the floor height of these reach trucks are adjustable. Palm Steering and a multifunctional joystick allow relaxed but precise operation, while a tilting seat reduces strain when viewing loads at height. Fast but smooth and safe action throughout the warehouse is assured by automatic drive and hydraulic motion speed controls which adapt to steering angle and lifting height. The Mast Tilt Control (MTC) damping system – minimising delays and improving stability – is standard or optional depending on mast choice. To minimise downtime and maintenance costs, our reach trucks are robustly constructed, fitted with a user-friendly display and onboard diagnostics, and designed for quick service access. Total cost of operation can be reduced even further with the high-efficiency, long-life, virtually maintenance-free Li-ion battery option. Along with standard duty models, choices include high-performance reach trucks for heavier duties and an ‘X’ model for heavy and extra-high lifting – up to 12.1 metres. Each can be matched perfectly to its application thanks to a long list of options.
