Battery-powered reach truck NR12-14N3(L)(C)
ride-onnarrow-aislefor warehouse

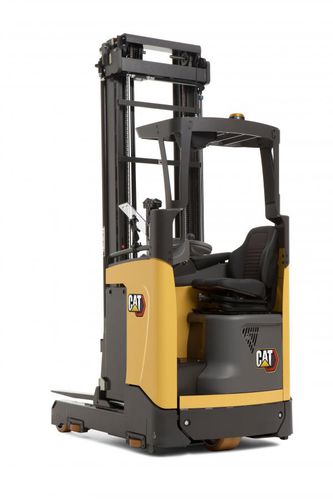

Battery-powered reach truck - NR12-14N3(L)(C) - Cat Lift Trucks - ride-on / narrow-aisle / for warehouse
Battery-powered reach truck - NR12-14N3(L)(C) - Cat Lift Trucks - ride-on / narrow-aisle / for warehouse
Battery-powered reach truck - NR12-14N3(L)(C) - Cat Lift Trucks - ride-on / narrow-aisle / for warehouse - image - 2
Battery-powered reach truck - NR12-14N3(L)(C) - Cat Lift Trucks - ride-on / narrow-aisle / for warehouse - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
battery-powered
Operator
ride-on
Applications
for warehouse, narrow-aisle
Other characteristics
compact, light-duty
Carrying capacity

1,200 kg, 1,400 kg
(2,645.5 lb, 3,086.5 lb)

Lifting height

Min.: 3,200 mm
(125.98 in)

Max.: 8,950 mm
(352.36 in)

Overall width

1,120 mm
(44.1 in)

Overall length

Min.: 2,343 mm
(92.2 in)

Max.: 2,623 mm
(103.3 in)

Load center distance

600 mm
(23.6 in)

Weight without load

2,510 kg, 2,710 kg, 3,410 kg
(5,533.6 lb, 5,974.5 lb, 7,517.8 lb)

Height of mast when lowered

Min.: 2,153 mm
(84.8 in)

Max.: 2,978 mm
(117.2 in)

Free lift

Min.: 175 mm
(6.9 in)

Max.: 3,028 mm
(119.2 in)

Overall height with mast raised

Min.: 3,735 mm
(147 in)

Max.: 9,495 mm
(373.8 in)

Height to top of overhead guard

2,205 mm
(86.8 in)

Seat height

1.1 mm
(0 in)

Length to fork face

Min.: 1,193 mm
(47 in)

Max.: 1,473 mm
(58 in)

Fork carriage width

830 mm, 910 mm
(32.7 in, 35.8 in)

Ground clearance at center of wheelbase with load

70 mm
(2.8 in)

Turning circle radius

1,598 mm
(62.9 in)

Travel speed

12.3 km/h, 12.5 km/h
(7.6 mph, 7.8 mph)

Lifting speed

Min.: 0.32 m/s
(1.05 ft/s)

Max.: 0.54 m/s
(1.772 ft/s)

Lowering speed

0.48 m/s, 0.57 m/s, 0.58 m/s, 0.6 m/s
(1.575 ft/s, 1.87 ft/s, 1.903 ft/s, 1.969 ft/s)

Rated drawbar pull

0.2 N

Gradeability

13.1 %, 19.6 %

Rated output

5.9 kW
(8 hp)

Maximum operating pressure

150 bar
(2,175.6 psi)

Oil flow

25 l/min
(6.6 us gal/min)

Noise level

57.4 dB

Description

These economical light reach trucks are the most compact in our reach truck collection and are ideal for use in the narrowest of warehouse aisles. Designed for light and medium duties at heights up to 7.25 metres, they are highly manoeuvrable and efficient reach trucks with all the quality you would expect from a Cat® product. Save time, money and space with this Cat light reach truck range Drivers of these light reach trucks can operate quickly and precisely, with minimum effort, thanks to the Palm Steering unit and multifunctional joystick – each with an adjustable armrest. Just 1.12 metres wide, and giving unbeatable all-round views, the trucks are ideally suited to working in tight warehouse spaces. Drive and hydraulic functions are automatically speed-controlled, according to steering angle and lift height, for rapid but smooth and safe action. For further safety and stability, tilting masts are fitted as standard and the Mast Tilt Control (MTC) damping system can be optionally specified. Time and money are saved by our reach trucks’ robust and wear-resistant construction, user-friendly display with onboard diagnostics, and quick service access features. Good examples of cost-saving design include the heavy duty drive wheel, and accessibility for battery checks without leaving the truck.
