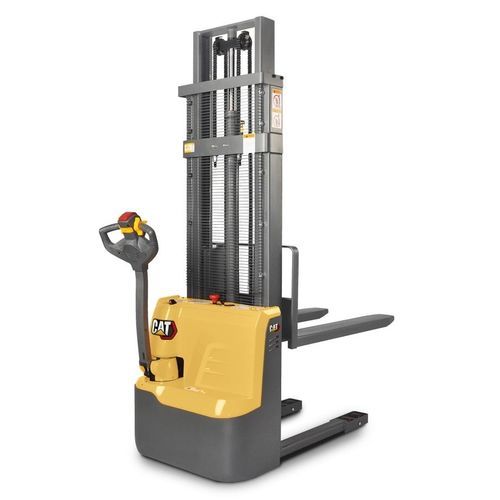

Electric stacker truck NSP12QLDI
walk-behindfor warehouselight-duty

Electric stacker truck - NSP12QLDI - Cat Lift Trucks - walk-behind / for warehouse / light-duty
Electric stacker truck - NSP12QLDI - Cat Lift Trucks - walk-behind / for warehouse / light-duty
Electric stacker truck - NSP12QLDI - Cat Lift Trucks - walk-behind / for warehouse / light-duty - image - 2
Electric stacker truck - NSP12QLDI - Cat Lift Trucks - walk-behind / for warehouse / light-duty - image - 3
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Applications
for warehouse
Other characteristics
compact, light-duty
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

2,500 mm, 3,000 mm, 3,300 mm
(98.43 in, 118.11 in, 129.92 in)

Height of mast when lowered

1,872 mm, 2,122 mm, 2,272 mm
(73.7 in, 83.5 in, 89.4 in)

Height of mast when raised

3,092 mm, 3,592 mm, 3,892 mm
(121.73 in, 141.42 in, 153.23 in)

Overall width

800 mm
(31.5 in)

Overall length

1,789 mm
(70.4 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,450 mm
(57.1 in)

Battery capacity

60 Ah

Motor power traction

0.65 kW
(0.884 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.5 km/h, 5 km/h
(2.8 mph, 3.11 mph)

Lifting speed

0.11 m/s, 0.14 m/s
(0.361 ft/s, 0.459 ft/s)

Weight

675 kg, 740 kg, 760 kg, 775 kg
(1,488.12 lb, 1,631.42 lb, 1,675.51 lb, 1,708.58 lb)

Description

Give your business a lift – with one small pedestrian stacker With a duplex mast, this pedestrian stacker will handle goods at heights up to 3.3 metres. Designed for light duties in warehouses, supermarkets and production areas, it saves space, time and money. You can even take it in vans and elevators. As well as stacking and short shuttle runs, its versatility extends to order picking and store shelf filling. A neat space-saving solution – our NSP12QLDI duplex mast compact pedestrian stacker High-quality, robust construction ensures reliable operation over a long lifetime, with minimal servicing and repair needs. Fork wheel pivot points are enclosed and protected within the fork design to avoid wear when operating on ramps. Durable pull rod offers extra structural strength, with high resistance to bending and deforming, for reliable performance and long life. Adjustable balance wheel height extends lifespan of drive wheel. AC drive motor promises a long service life with low maintenance needs, thanks to elimination of brushes and commutators. Sealing of motors reduces risk of damage by dust and water.
