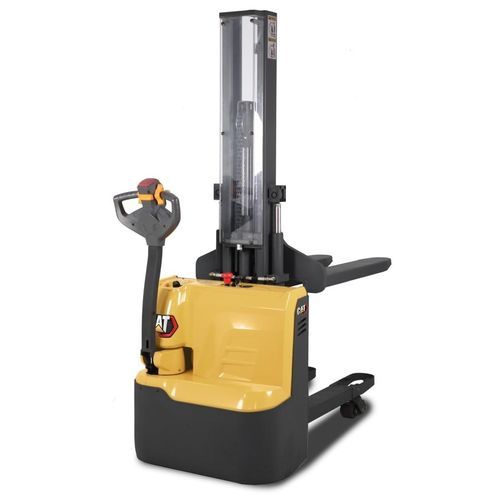

Electric stacker truck NSP12QLMI
24 Vfor industrial applicationsfor warehouse

Electric stacker truck - NSP12QLMI - Cat Lift Trucks - 24 V / for industrial applications / for warehouse
Electric stacker truck - NSP12QLMI - Cat Lift Trucks - 24 V / for industrial applications / for warehouse
Electric stacker truck - NSP12QLMI - Cat Lift Trucks - 24 V / for industrial applications / for warehouse - image - 2
Electric stacker truck - NSP12QLMI - Cat Lift Trucks - 24 V / for industrial applications / for warehouse - image - 3
Electric stacker truck - NSP12QLMI - Cat Lift Trucks - 24 V / for industrial applications / for warehouse - image - 4
Add to favorites
Compare this product

Characteristics

Energy
electric
Voltage
24 V
Applications
for warehouse, for industrial applications
Other characteristics
compact, light-duty
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

1,600 mm, 1,950 mm
(62.99 in, 76.77 in)

Free lift

1,600 mm, 1,950 mm
(63 in, 76.8 in)

Height of mast when lowered

2,050 mm, 2,400 mm
(80.7 in, 94.5 in)

Height of mast when raised

2,060 mm, 2,410 mm
(81.1 in, 94.88 in)

Overall width

800 mm
(31.5 in)

Overall length

1,770 mm
(69.7 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,450 mm
(57.1 in)

Battery capacity

60 Ah

Motor power traction

0.65 kW
(0.884 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.5 km/h, 5 km/h
(2.8 mph, 3.11 mph)

Lifting speed

0.06 m/s, 0.13 m/s
(0.197 ft/s, 0.427 ft/s)

Weight

685 kg
(1,510.17 lb)

Description

Do it all with one little pedestrian stacker This economical, versatile and space-saving pedestrian stacker is ideal for light duties in warehouses, supermarkets and production areas. It’s even small enough to take into vans and elevators. You can use it for short shuttle applications, stacking up to 1.95 metres, filling store shelves and order picking. Our NSP12QLMI mono mast compact pedestrian stacker brings you versatility in a small package High-quality, robust construction ensures reliable operation over a long lifetime, with minimal servicing and repair needs. Fork wheel pivot points are enclosed and protected within the fork design to avoid wear when operating on ramps. Durable pull rod offers extra structural strength, with high resistance to bending and deforming, for reliable performance and long life. Adjustable balance wheel height extends lifespan of drive wheel. AC drive motor promises a long service life with low maintenance needs, thanks to elimination of brushes and commutators. Sealing of motors reduces risk of damage by dust and water.
