Electric stacker truck NSP12Q2LM
battery-poweredwalk-behind24 V

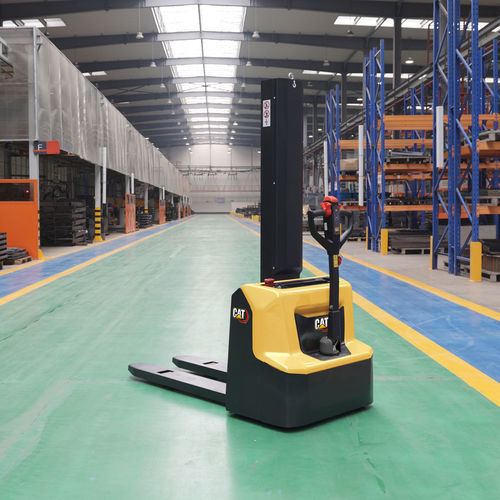

Electric stacker truck - NSP12Q2LM - Cat Lift Trucks - battery-powered / walk-behind / 24 V
Electric stacker truck - NSP12Q2LM - Cat Lift Trucks - battery-powered / walk-behind / 24 V
Add to favorites
Compare this product

Characteristics

Energy
electric, battery-powered
Operator
walk-behind
Voltage
24 V
Applications
for warehouse, for the food industry, for production
Other characteristics
compact
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

2 m
(6'06" )

Free lift

714 mm
(28.1 in)

Height of mast when lowered

1,210 mm, 1,930 mm, 2,330 mm
(47.6 in, 76 in, 91.7 in)

Height of mast when raised

1,210 mm, 1,930 mm, 2,385 mm
(47.64 in, 75.98 in, 93.9 in)

Overall width

800 mm
(31.5 in)

Overall length

1,710 mm
(67.3 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Fork spacing

570 mm, 685 mm
(22.44 in, 26.97 in)

Turning circle radius

1,350 mm
(53.1 in)

Battery capacity

60 Ah

Motor power traction

0.65 kW
(0.884 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

0.11 m/s, 0.14 m/s
(0.361 ft/s, 0.459 ft/s)

Weight

500 kg
(1,102.31 lb)

Description

Overview
This economical, versatile and space-saving pedestrian stacker is intended for light duties in warehouses, supermarkets and production areas. Compact dimensions allow transport in vans and elevators. Suitable for short shuttle applications, stacking up to 2.0 metres, shelf replenishment and order picking.

Lower cost of ownership
  • Impact-resistant steel chassis cover to reduce servicing and repair needs.
  • AC drive motor for long service life and low maintenance.
  • Li-ion battery technology (typ. 24V/60Ah) provides long runtime with no water top-ups.
  • Display with fault warnings to enable timely intervention and prevent damage.
  • Fast plug-in diagnostics via external port for troubleshooting and programming to reduce downtime.
  • PIN code access and keyless start; optional RFID tags to prevent unauthorised use.


Productivity
  • Compact, stable design for safe, efficient manoeuvring in confined spaces.
  • Small footprint and efficient steering for a tight turning radius in narrow aisles.
  • Light weight makes the truck suitable for use on mezzanines.
  • Automatic cornering speed reduction to preserve stability.
  • Clear-view mono mast available with maximum lifts up to 2.0 metres.
  • Optional initial lift raises mast and forks to increase ground clearance and supports double-pallet handling (one on support legs, one on forks).
  • 24V/60Ah high-capacity Li-ion battery supports continuous operation with opportunity charging and includes an internal charger for plug-in charging.
  • Advanced Battery Management System (BMS) optimises power, lifetime and safety; battery level display aids optimal charging.


Safety
  • Ergonomic spring-loaded tiller arm for comfortable grip and reduced operator effort.
  • Multifunctional tiller head places controls within easy reach for one-handed operation.
  • Turtle/creep speed button allows safe manoeuvring with the tiller arm vertical in narrow spaces.
  • Li-ion battery chemistry avoids risks associated with acid leaks or hazardous gases.


Technical specifications
  • Model: NSP12Q2LM
  • Rated capacity: 1200 kg (1.2 tonnes)
  • Load centre: 600 mm
  • Maximum lift (mono mast): up to 2.0 metres
  • Engine / power: Electric
  • Drive motor: AC drive motor
  • Battery: Li-ion technology; typical configuration 24V/60Ah (high-capacity)
  • Internal charger: integrated internal charger for plug-in charging
  • Advanced BMS: battery management system to optimise performance and safety
  • Optional features: initial lift (increased ground clearance and double pallet handling), RFID access
  • Chassis: impact-resistant steel chassis cover
  • Controls & ergonomics: ergonomic spring-loaded tiller arm, multifunctional tiller head, turtle/creep speed button
  • Diagnostics: fast plug-in diagnostics via external port
  • Suitable applications: light duties in warehouses, supermarkets and production areas; transportable in vans and elevators; order picking and short shuttle operations
