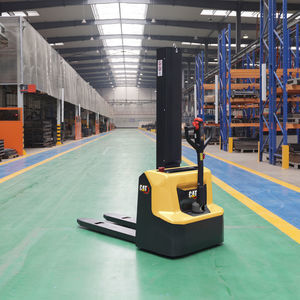

Electric stacker truck NSP series

battery-poweredwalk-behind24 V

Overview
Give your business a lift – with one small pedestrian stacker. With duplex masts, these pedestrian stackers will handle goods at heights up to 3.6 metres. Designed for light duties in warehouses, supermarkets and production areas, they save space, time and money. You can even take them in vans and elevators. As well as stacking and short shuttle runs, their versatility extends to order picking and store shelf filling. A neat space-saving solution – our NSP12-13Q2LD(I) duplex mast compact pedestrian stackers.

Lower cost of ownership

• High-quality, robust construction including impact-resistant steel chassis cover ensures reliable operation and minimal servicing/repair needs.
• AC drive motor offers long service life with low maintenance.
• Li-ion batteries provide maximum lifespan, efficiency and runtime with no water top-ups or similar maintenance.
• Display includes fault warnings to enable timely attention and prevent damage.
• Fast plug-in diagnostics, troubleshooting and programming via an external port reduce downtime and maintain efficient performance.
• Convenient PIN code access and keyless start, supported by optional RFID tags, prevents unauthorised use and saves time.

Productivity

• Light weight makes the trucks ideal for use on mezzanines (1.2 tonne models).
• Automatic cornering speed reduction avoids loss of stability.
• Clear-view masts give excellent forward vision; available with maximum lifts up to 3.6 metres.
• Choice between single and duplex masts allows economical matching with lift height requirements.
• Full free lifting mast on 1.3 tonne models enables large free lift where height space is limited.
• Initial lift (I) models raise mast and forks to give increased ground clearance for better performance on ramps, dock levellers and uneven floors.
• Double pallet handling design of initial lift (I) models allows lifting and carrying of two loads simultaneously (one on support legs and one on forks).
• 24V/60Ah high-capacity Li-ion battery (24V/100Ah on 1.3 tonne models) for powerful performance and long runtime.
• Li-ion technology enables continuous operation with fast opportunity charging during short breaks.
• Internal charger allows simple plugging into any suitable electrical socket.
• Advanced battery management system (BMS) optimises power, lifetime and safety; battery level display supports optimal charging timing.

Safety

• Ergonomic spring-loaded tiller arm provides comfortable grip and low-effort operation for maximum control with minimal fatigue.
• Multifunctional tiller head places controls within easy reach and enables one-handed operation.
• Turtle/creep speed button allows manoeuvring with tiller arm vertical for safe movement in narrow spaces.
• Li-ion battery chemistry removes risk of hazardous gas or acid leaks.

Specifications table
Model | Capacity (kg) | Load Centre (mm) | Engine
NSP12Q2LD | 1200 | 600 | Electric
NSP12Q2LDI | 1200 | 600 | Electric
NSP13Q2LD | 1300 | 600 | Electric
NSP13Q2LDI | 1300 | 600 | Electric
NSP13Q2LD Triplex Mast | 1300 | 600 | Electric
NSP13Q2LDI Triplex Mast | 1300 | 600 | Electric

Technical specifications

• Commercial denomination: NSP12-13Q2LD(I)
• Load capacity: 1.2 tonnes (1200 kg) and 1.3 tonnes (1300 kg) variants.
• Load centre: 600 mm.
• Maximum lift heights available up to 3.6 metres (with duplex masts).
• Mast options: single, duplex and triplex; full free lift available on 1.3 tonne models.
• Initial lift (I) option: increased ground clearance, improved ramp and uneven floor performance, and double pallet handling capability.
• Powertrain: electric drive.
• Batteries: Li-ion technology; typical capacities noted on page include 24V/60Ah (standard) and 24V/100Ah (on 1.3 tonne models); internal charger and advanced BMS included.
• Drive motor: AC drive motor (low maintenance, long life).
• Chassis: impact-resistant steel chassis cover for durability.
• Operator controls: ergonomic spring-loaded tiller arm, multifunctional tiller head, turtle/creep speed button.
• Safety/anti-theft: display fault warnings, PIN code access and optional RFID keyless start.
• Diagnostics: fast plug-in diagnostics, troubleshooting and programming via external port.
