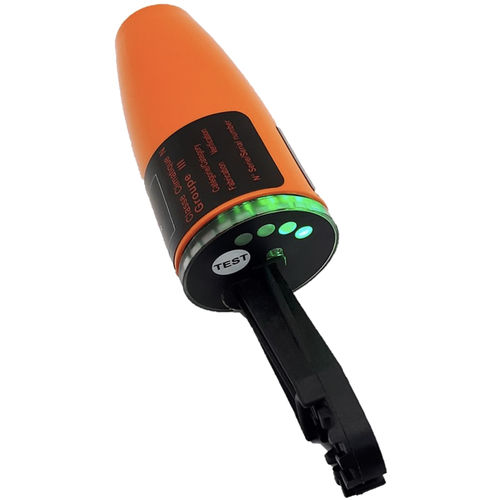

Voltage detector CN-7 seriesoutdoorfor indoor usecompact
Add to favorites
Compare this product
Characteristics
- Detected entity
- voltage
- Application
- outdoor, for indoor use
- Other characteristics
- compact, non-contact
Description
Application:
Non-contact voltage detector, voltage range from 3 kV to 765 kV.
Approximate detection distances (varying with the environment): 150 mm mini (11 kV) to 700 mm mini (66 kV)
Ultra-compact, switchless series to ensure permanent operator safety (indoor and outdoor use).
Features:
Nominal network range: 3 kV - 765 kV (8 ranges model proposed).
360° light indication.
Self test function.
Precise and stable operating threshold.
Reduced sensitivity to induced voltages and to interference fields.
Temperature conditions: class N (-25°C to +55°C).
Power supply: 1 standard 9 V battery 6LR61.
Network frequencies: 50 to 60 Hz.
High environmental resitance (impact, vibrations, moisture) due to robust thermoplastic housing.
Composition:
Packaging: supplied in a carrying bag.
Optional accessories:
Recommended insulating sticks: CE-4-21, CE-9, CE-5
