Electrical protection safety shoes MV-223 series

thermal protectionanti-perforationanti-slip

Summary

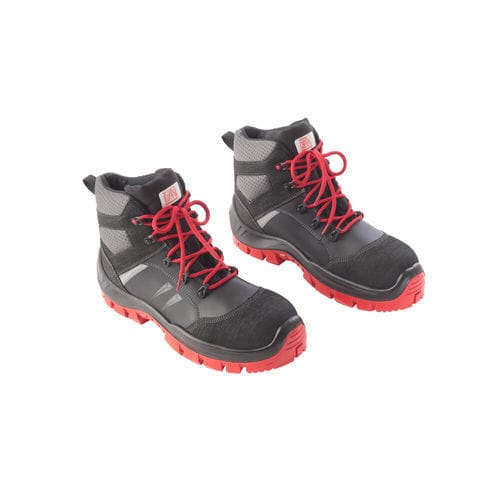

High-cut safety shoes with insulating sole, leather model.

Standards

• EN ISO 20345:2022 — SB PL AN CI HI E FO LG SR
• Pr-EN50321-2 :2023 (03/2024) § 5, 5.2.1 → 5.2.3 (tests before/after perforation and withstand)
• ST HTA 70 A (RTE SERECT) § 4.2

Usage

• High leather safety shoes with insulating sole rated 1 000 V AC / 1 500 V DC.
• Tested before and after perforation at 5 kV AC / 10 kV DC (test voltage) and 10 kV AC / 20 kV DC (withstand voltage) according to Pr-EN50321-2 :2023.
• Outsole with 7 mm molded lugs and 10 mm heel for improved grip on ladder rungs; suitable for indoor use, on dry, uneven, greasy or smooth surfaces and for work at height.
• Anatomical, breathable, antibacterial and washable insole; high-energy-return outsole with anti-torsion arch support for anti-fatigue comfort.
• Designed for electricians, industry, logistics, transport and trades.

Variants / Table
Reference — Size — Operating voltage AC — Operating voltage DC
MV-223-39 — 39 — 1 000 V — 1 500 V
MV-223-40 — 40 — 1 000 V — 1 500 V
MV-223-41 — 41 — 1 000 V — 1 500 V
MV-223-42 — 42 — 1 000 V — 1 500 V
MV-223-43 — 43 — 1 000 V — 1 500 V
MV-223-44 — 44 — 1 000 V — 1 500 V
MV-223-45 — 45 — 1 000 V — 1 500 V
MV-223-46 — 46 — 1 000 V — 1 500 V
MV-223-47 — 47 — 1 000 V — 1 500 V

Characteristics / Technical specifications

• Upper: full-grain leather and additional materials.
• Sole: PU/PU (outer sole / midsole).
• Abrasion reinforcements at fore and heel.
• Retroreflective bands on the sides.
• Breathable, quick-drying and antibacterial lining.
• Fibreglass toe cap (impact resistance 200 J, compression 15 kN) with comfortable padding.
• Pierce-resistant PL (fabric layer covering 100% of the midfoot, 1430 N).
• Performance codes: SB (basic protection), SR (slip resistance on tile + glycerine), PL, AN (malleolus protection), CI (cold insulation), HI (heat insulation), E (heel energy absorption), FO (hydrocarbon resistant), LG (ladder-grip sole).
• Unit test of each shoe before shipment: test voltage resistance 5 kV / 1 min in accordance with ST HTA 70 A § 4.2.
• Made in France.
