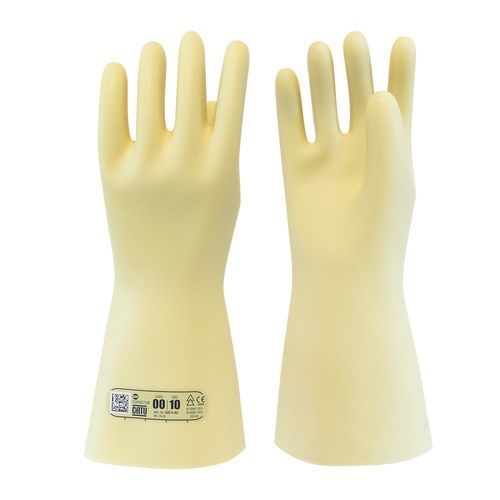

Work glove CG-05 series

industrialcold weatherinsulated

Short description
Electrical insulating rubber gloves, class 00 (500 V AC, 750 V DC). Length: 360 mm. Natural color latex construction for dielectric performance.

Application:

• Wellfit finish: soft, supple and ergonomic for comfortable work and high flexibility.
• Designed to fit various hand shapes.
• No built-in mechanical protection: to be worn with leather over-gloves to ensure full mechanical protection.

Features:

• Electrical insulating gloves, class 00 (500 V AC, 750 V DC).
• Length: 360 mm.
• Cut edge design.
• Material: natural color latex with high dielectric properties.
• Traceability via flashcode on a color-coded label (color corresponds to class).
• Category: AZC (acid, ozone and cold resistance).

Standards
EN 60903:2003, IEC 60903:2014

Available references (table)
Reference | Class | Operating Voltage AC | Operating Voltage DC | Length (mm) | Category | Enedis Code
CG-05-A | 0 | 500 V | 750 V | 360 | AZC | 3714080
CG-05-B | 0 | 500 V | 750 V | 360 | AZC | 3714081
CG-05-C | 0 | 500 V | 750 V | 360 | AZC | 3714082
CG-05-D | 0 | 500 V | 750 V | 360 | AZC | 3714083

Technical specifications

• Class: 00 (500 V AC, 750 V DC).
• Operating voltage (AC): 500 V.
• Operating voltage (DC): 750 V.
• Length: 360 mm.
• Material: natural color latex.
• Cut edge.
• Category: AZC (acid, ozone, cold resistance).
• Traceability: flashcode on color-coded label (color according to class).
• Standards: EN 60903:2003, IEC 60903:2014.
• Use: insulating gloves to be combined with leather over-gloves for mechanical protection.
