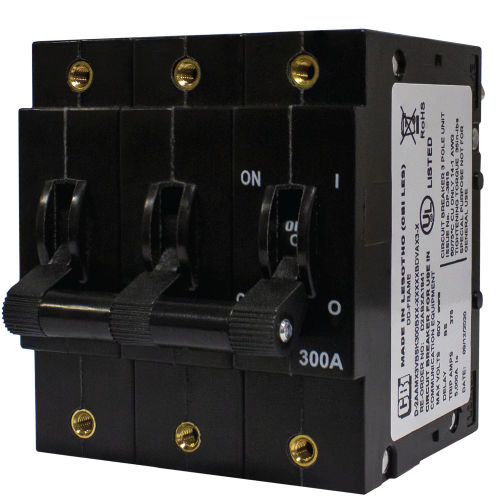

Thermal circuit breaker D2R seriesDC3-polehigh-current
Add to favorites
Compare this product
Characteristics
- Type
- thermal
- Electrical characteristics
- DC, 3-pole, high-current
- Operating mode
- modular, manual reset
- Applications
- distribution
- Number of poles
- bipolar
- Other characteristics
- with stud terminal
- Primary current
125 A, 250 A, 300 A
- VDC
60 V
Description
DD Frame - Higher Ratings 60 Vdc Rear Studs
Number of Poles:
Triple Pole Bridged:
Curves:
• AS (Long Delay)
• BS (Medium Delay)
• CS (Short Delay)
Mounting Option:
Metric Mounting
Terminations:
M6 Rear Studs
Approvals:
• IEC60947-2
• UL489A
• EAC
• CE
