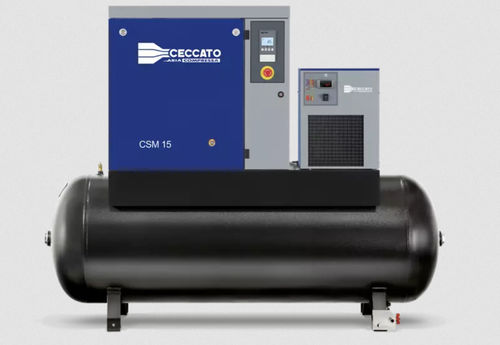

Screw compressor CSM 7.5 – 20 HP series
airelectricstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
process
Other characteristics
compact, tank-mounted, high-performance, small, fixed-speed
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 8 bar
(116.03 psi)

Flow

Max.: 1,860 l/min
(491.36 us gal/min)

Min.: 864 l/min
(228.24 us gal/min)

Power

Max.: 15 kW
(20.39 hp)

Min.: 5.5 kW
(7.48 hp)

Noise level

Max.: 71 dB

Min.: 64 dB

Description

Easy to use and maintain thanks to the intuitive controller and the removable panel, which allows access to the internal components All-in-one solution a complete compressed air system with a unique compact unit, available with a dryer or tank-mounted. Silent thanks to the cover that absorbs the noise, it can be installed next to the point of usage The CSM 7.5 – 20 HP small, fixed speed screw compressor is the ideal solution for small industries. Solid and reliable, this high-performance compressor can be installed next to the point of use or can be utilised to amplify already existing installation. Extremely silent, CSM 7.5 – 10 HP screw air compressors do not require a compressor room, helping you to reduce distribution system running costs and diminishing the pressure losses within the system. Ceccato’s CSM 7.5 – 10 HP is the latest generation of screw compressors, providing you a more modern and efficient solution.
