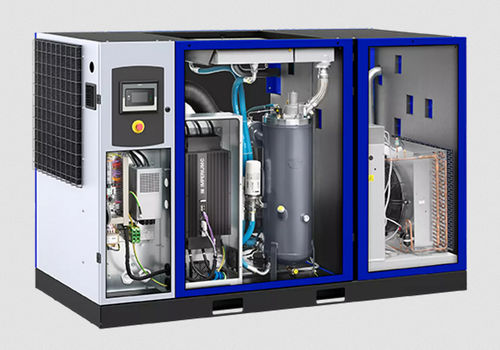

Screw compressor DRD 60 - 100 HP IVR PM series
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
process, recovery, machine
Other characteristics
high-efficiency, variable-speed
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 4 bar
(58.02 psi)

Flow

Max.: 13,200 l/min
(3,487.07 us gal/min)

Min.: 1,680 l/min
(443.81 us gal/min)

Power

Max.: 75 kW
(101.97 hp)

Min.: 45 kW
(61.18 hp)

Noise level

Max.: 71 dB

Min.: 68 dB

Description

Decreased environmental impact thanks to the permanent magnet technology Energy consumption reduced up to 45% if compared to fixed speed models More extended components’ life-cycle also thanks to the optimal cooling system Adapted specifically to medium-sized businesses, DRD 60 – 100 HP IVR PM compressors push the energy savings to the next level, reducing energy consumption up to 17% then traditional variable speed models, and up to 45% when compared to the same fixed speed compressors. This range of compressors applies Ceccato’s most innovative - permanent magnet engine technology. The energy recovery option can be installed directly with the compressors, allowing you to recover the heat of the entire compression process and reusing it in your production facility. Thanks to the innovative direct transmission technology, the optimal cooling system and the protective cover protecting your machine from dust and debris particles, the DRD 60 – 100 HP IVR PM is a solid and reliable choice of an air compressor with power ranging from 60 to 100 HP.
