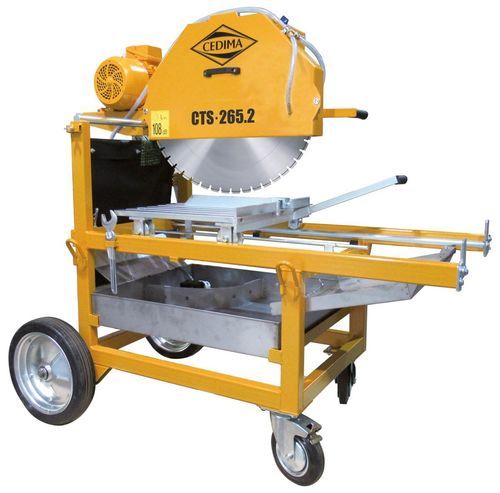

Circular saw CTS-265.2

for stone and concretefor masonrywith manual feed

Product description
The CTS-265.2 table saw with a powerful three-phase electric motor is designed for cutting large-format Poroton bricks, sand-lime blocks and similar abrasive masonry materials. It features a lockable, adjustable pendulum cutting arm for controlled separation at large cutting depths, a rolling feed table for safer handling and a removable stainless-steel water tray for easy cleaning.

Features & Characteristics

• Powerful 400 V / 50 Hz three-phase electric motor, 5.5 kW
• Hour meter in the control box
• Adjustable, smooth-running and lockable pendulum cutting head
• Removable stainless-steel water tray for easy cleaning
• Cooling water supplied by an electric pump (25 l/min)
• Rolling table with feed rod for improved work safety
• Manual feed

Accessories

• Water Pump CEP-1600
• Connector

Technical specifications

• Max. cutting depth: 265 mm
• Max. saw blade Ø: 650 mm
• Min. saw blade Ø: 500 mm
• Max. cutting length: 700 mm
• Blade bore: 25.4 mm
• Motor output (net): 5.5 kW
• Motor type: Electric
• Electrical connection: 400 V / 50 Hz
• Feed: manual
• Water pump: electric, 25 l/min
• Water tray capacity: 50 l
• Dimensions L/W/H (transport): 1750 / 900 / 1530 mm
• Weight: 240 kg
