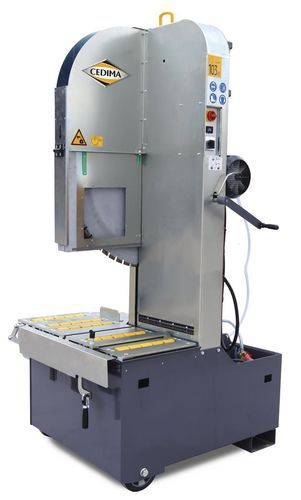

Circular saw CTS-1000 L

verticalfor stone and concrete

Product description
The CEDIMA tower saw CTS-1000 L is a powerful machine for vertical cutting of large-format blocks using diamond blades up to Ø 1000 mm and an extended cut length of up to 850 mm. Motor and gearbox are engineered to keep the diamond tool's peripheral speed close to the optimal 50 m/s, providing excellent cutting performance and long blade life. The clear layout, simple handling and high safety standard enable fatigue-free, operator-friendly work.

Functions & features

• Very robust, durable construction
• Two models available with different positioning rollers
• Operating hours counter as standard — ideal for rental
• Low-maintenance, enclosed chain gearbox for blade drive
• Large lifting eye and removable tail wheel simplify transport and repositioning
• Forklift transport bracket under the water tray

Technical data

• Max. cutting depth: 420 mm
• Max. blade Ø: 1000 mm
• Min. blade Ø: 900 mm
• Max. cut length: 850 mm
• Blade bore: 60.0 mm
• Motor power (net): 7.5 kW
• Motor type: Electric
• Supply: 400 V / 50 Hz
• Feed: manual
• Water pump: electric
• Water tray capacity: 60 l
• Dimensions L/W/H (transport): 1175 / 1115 / 2175 mm
• Weight: 420 kg
