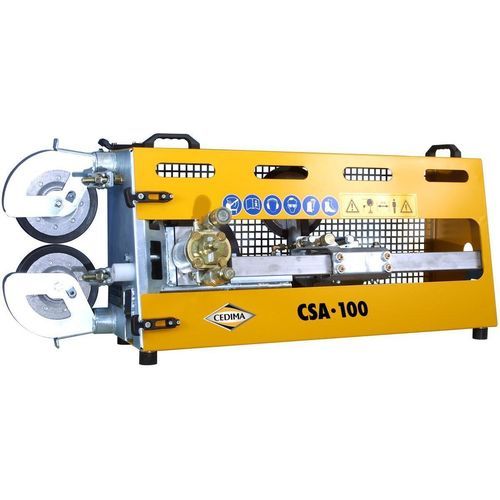

Concrete cutter CSA-100 H

Product description
The CEDIMA CSA-100 is a multi-patented and award-winning machine for performing small and medium separation cuts with diamond wire. Despite its compact dimensions and light weight, it delivers very high power of up to 20 kW. The machine accommodates up to 6.5 m of diamond wire, plus an additional 1.5 m by shifting the machine on the mounting tube.

Functions & features

• no single component weighs more than 21 kg
• high power up to 20 kW
• patented protection and safety technology
• operator relief through automatic feed
• extremely transport- and assembly-friendly
• high-quality storage and deflection rollers made of aluminium with replaceable rubber linings

Components

• CSA-100, automatic wire saw with 2 mini deflection rollers and base mounting foot, without drive motor
• wire protection equipment with water catch function
• HM-19, hydraulic drive motor 19 cm³
• HAG-12.22, hydraulic power unit with control panel
• hose kit, 3-piece, 10 m long, for drive wheel drive of wire saw
• hose kit, 2-piece, 10 m long (for feed during wire sawing with HAG-12.20)

Documents & downloads (names)

• Product info (6.1 MiB)
• Catalog page (623.9 KiB)

Technical data
Motor type: hydraulic motor
Dimensions L/W/H (transport): 1050 x 300 x 460 mm
Weight: 60.8 kg

Characteristics / technical specifications

• Motor type: hydraulic motor
• Power: up to 20 kW
• Maximum retractable wire length: up to 6.5 m (plus 1.5 m by shifting on the mounting tube)
• Transport dimensions (L x W x H): 1050 x 300 x 460 mm
• Weight: 60.8 kg
• Maximum weight of a single component: ≤ 21 kg
• Storage and deflection rollers made of aluminium with replaceable rubber linings
