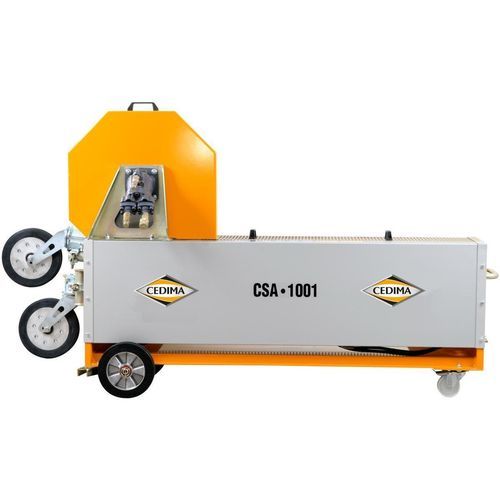

Concrete cutter CSA-1001 H

Product overview
The CSA-1001 H automatic wire saw is a compact, transport-friendly rope-drive unit with automatic cutting force control and stepless rope retraction. Designed for heavy-duty wire-sawing tasks, it integrates low-interference hydraulic components and a user-friendly control to reduce operator workload and minimise setup errors.

Features & Characteristics

• Lightweight aluminium construction
• Internal hydraulic cylinder maintains constant rope tension
• Automatic feed reduces operator intervention
• Aluminium storage and deflection rollers with replaceable rubber sleeves
• Power feature: up to 24 kW
• Central rope entry/exit with swivel pulleys
• Stepless rope retraction for precise feed control

Components

• CSA-1001: automatic wire saw with 2 swivel rollers and 10 storage rollers (without rope drive unit and drive wheel)
• Rope protection equipment
• Rope drive unit with hydraulic motor 40 cm³ and driving wheel guard
• Rope drive wheel Ø 600 mm with replaceable drum
• HAG-12.22 hydraulic power unit with control panel
• Hose packages: 3-piece for driving wheel drive, 2-piece for feed

Technical specifications

• Motor output (net): max. 30 kW
• Motor type: hydraulic motor
• Dimensions L/W/H (transport): 1950 x 600 x 550 mm
• Weight: 180 kg

Rope capacity & additional specifications

• Usable rope storage capacity: max. 21 m with 14 storage rollers
• Rope drive motor size (component reference): hydraulic motor 40 cm³ (for rope drive unit)
• Rope drive wheel diameter: Ø 600 mm (with replaceable drum)
• Power (feature): up to 24 kW
• Motor output (spec): max. 30 kW
• Transport dimensions: 1950 x 600 x 550 mm
• Weight: 180 kg
