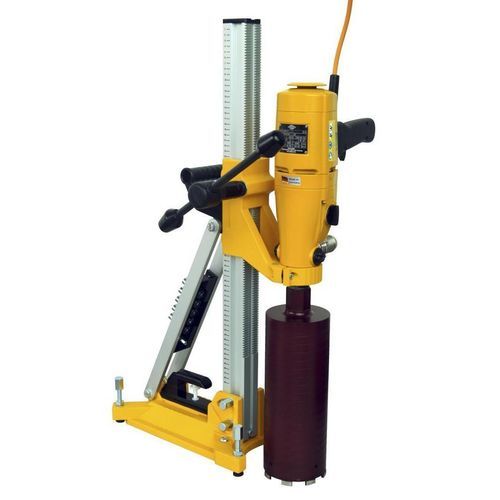

Electric core drilling machine H-160compactlightweight
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Other characteristics
- compact, lightweight
- Drill diameter
160 mm
(6.3 in)
Description
Product overview
The compact and lightweight Cedima H-160 drill stand is a core drilling support designed for light drilling tasks. The combination dowel foot enables fixing by mechanical anchors or, on suitable substrates, by vacuum. The stand accepts Cedima drill motors with a clamping neck Ø 60 mm. Maximum drilling diameter: 160 mm.
Features & Characteristics
Technical specifications
The compact and lightweight Cedima H-160 drill stand is a core drilling support designed for light drilling tasks. The combination dowel foot enables fixing by mechanical anchors or, on suitable substrates, by vacuum. The stand accepts Cedima drill motors with a clamping neck Ø 60 mm. Maximum drilling diameter: 160 mm.
Features & Characteristics
- Aluminium drilling column with integrated rack
- Infinitely adjustable inclined drill joint up to 45°
- Motor mounting plate for clamping-neck motors integrated in the carriage
- Vacuum plate integrated in the base for substrate fixation
- Transport handle and support
- Feed adjustment and setting via manual feed lever
Technical specifications
- Maximum drilling diameter: 160 mm
- Max. lifting (stroke): 600 mm
- Feed: manual
- Dimensions (transport) L × W × H: 470 × 210 × 840 mm
- Weight: 11 kg
- Compatible motors / Use with: DKS-15 SP, C-BMH-160, C-BM-17, DK-17
