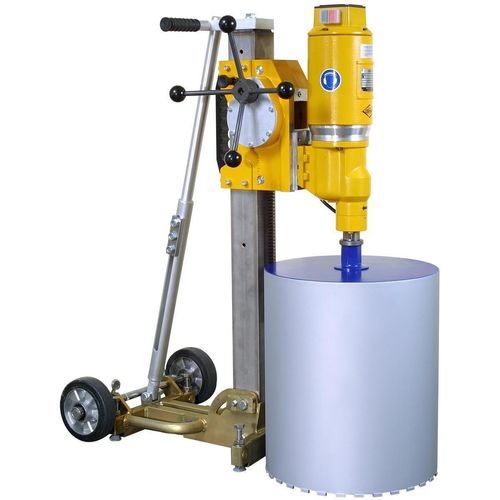

Hydraulic core drilling machine P-6000

electricfor concretelong-stroke

Product overview
The Cedima P-6000 drill stand is designed for heavy drilling tasks with electric or hydraulic drilling motors. It is available with torsion-resistant stainless-steel drill columns with 570 mm or 1570 mm stroke. The galvanized steel anchor base includes an integrated angled-drill joint for angled drilling. The maximum drilling diameter with a hydraulic drive is 600 mm.

Key features

• Stainless-steel drill column
• Aluminium guide carriage with integrated fine feed 1:4
• Telescopic support with handles
• Steel anchor base with wheel mounting kit
• Integrated angled-drill joint in the galvanised steel anchor base
• Carriage guided by high-load ball bearings and brass running surfaces

Technical specifications

• Drilling Ø: up to 600 mm
• Max drilling stroke: 1570 mm
• Feed: manual
• Dimensions L/W/H (transport): 435 x 365 x 2000 mm
• Weight: 28.5 kg
• Compatible with: C-BMS-350, C-BM-32, C-BM-32 S, DK-32, DK-52

Applications

• Core drilling in concrete and masonry with electric or hydraulic motors
• On-site angled drilling
• Geotechnical and structural drilling preparation
