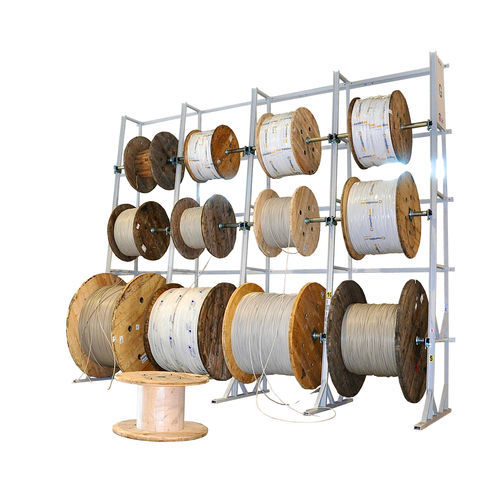

Workshop shelving 0080.0000P

with shelvesmulti-storagemodular

Drum storage dispensing system Rack heavy version Rack made with support elements to achieve greater capacity and to prevent accidental impacts. Integrated with shafts with a larger diameter and with single supports more resistant compared to those of the standard version. • Side panels Code 0080 made in UNP steel 100x8mm with extra elements to increase capacity in order to carry heavy loads. • Single supports (Code 0023) offer a 100% safety and huge liberty of drums replacement. They allow to position the drums wherever you want, not forcing to mantain the drums on the same line. • Shafts code 0015C-75 made in steel tubes 76,1x6,3 and integrated with self lubricating bushings. The shaft terminal turns into the resin bushing allowing an optimal unwinding process and avoiding that the bushing could worn. Carrying capacity 5000Kg. Model 0080.0000P Dimension MT 2 / 2,5 / 3 / 3,5 / 4 / 4,5 / 5 / 5,5 / 6 Carrying capacity KG 10.000 Single supports 0023 Shafts 0015C.0000-75 Columns width MT 0,7 / 0,8 / 0,9 / 1 / 1,1 / 1,15 / 1,30
