Storage warehouse shelving SM RACK

tubularadjustablemodular

Product detail

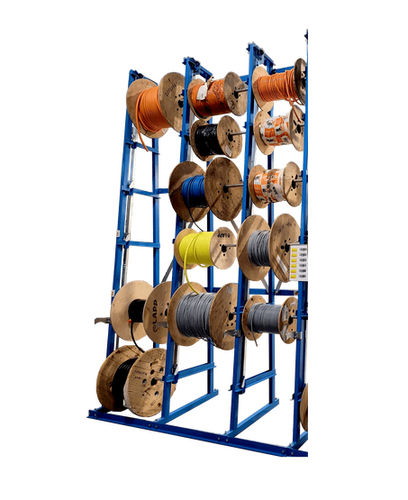

Vertical storage system for reels, modularly expandable.
The reel rack is fitted with tube shafts rotating on supports integrated with mechanical safety devices to prevent accidental release of reels.

Features

• Vertical side frames made from 40×40×3 mm tubular steel profile;
• Floor-mounted self-supporting structure;
• Load capacity 300 kg per bay;
• Bay width available on request;
• Inclined chute for shaft engagement;
• Mechanical cage safety devices to prevent accidental reel release.

Technical Data
Model: 0065.3000 / 3500
Height (m): 3 / 3.5
Load per bay (kg): 300
Shaft code: 0010.0000
Shaft diameter (mm): 27 – 33

Cage safety system
The supports are equipped with a cage safety system that prevents reels from accidentally falling out during use. The system opens simply and securely. Lift the knob-positioner to unlock the opening/closing lever. Pulling the lever upward simultaneously releases the anti-release lock of all supports on a single side.

Characteristics / Technical specifications

• Model: 0065.3000 / 3500
• Available heights: 3 m or 3.5 m
• Load per bay: 300 kg
• Shaft code: 0010.0000
• Shaft diameter: 27 – 33 mm
• Side frames: 40×40×3 mm tubular steel profile
• Structure: floor-mounted self-supporting
• Bay width: available on request
• Inclined chute for shaft engagement
• Mechanical cage safety devices
