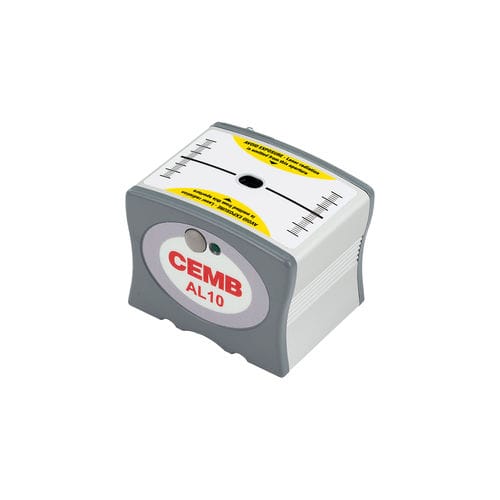

Laser alignment system AL10

pulley

Laser Belt Alignment System Quick and accurate solution for Belt Alignment EASY TO USE DOUBLE LASER UNIVERSAL INSTALLATION The new Laser Belt Alignment System AL10 uses two laser transmitters for the projection of a two laser lines. The pulley groves are used as a reference. These generated lines indicate the alignment of the transmission quickly and correctly. Aligment process The two laser units generate a line on the opposite unit. When the pulleys are correctly aligned, the lines coincide with the references centering on both units. The dual laser alignment provides greater precision and speed than single laser systems. If the belt transmission is misaligned, the line deviates from the center. TYPES OF MISALIGNMENT It is very important that the pulleys are mounted correctly on the shafts and that the shafts are straight before starting the alignment process. The oscillating or deformed sheaves severely influence the quality of the alignment. The types of misalignment are described below: Angular misalignment Parallel misalignment
