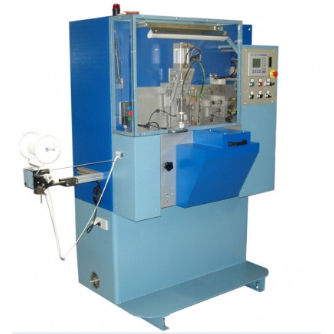

Automatic assembly machine ULTRASTRAP
for bra strapsultrasonic welding

automatic assembly machine
automatic assembly machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Applications
for bra straps
Other characteristics
ultrasonic welding

Description

Automatic process . Put-to-length of the elastic ribbon . Threading of the slide and ring on the ribbon . Ultrasonic welding of the ribbon around the slide axis . Ultrasonic cutting of the ribbon . Defect diagnosis through touch-screen You are interested in our technology but you have more specific needs? Check the different standard modules we use on this machine and see how you could integrate them to a more personalized machine. Fabric features . Max. length 610 mm / Min. length 210 mm . Max. width 24 mm / Min. width 8 mm (length up to 710 mm and width of 6 mm available upon request) . Optional ironing system (separate device) . All types of slides and rings (plastic, metal, coated, …) Machine features . Production rate : up to 500 pieces per hour for a 400 mm long strap . Sonics : 30 kHz, 1500 W . Pneumatic : 6 bars . Electrical tension : 220 V single phase, 50 or 60 Hz . Air consumption : about 280 litres / min . Dimensions of the machine (in m) : 2,00 x 0,80 x 1,90 (h x l x L) . Weight of the machine : 550 kg Why Cera Engineering? Because we combine years of experienced know-how in ultrasonic welding, with a technical expertise as a manufacturer of production machines. Industrial equipment at competitive prices. A wide range of cutting and welding tooling.
