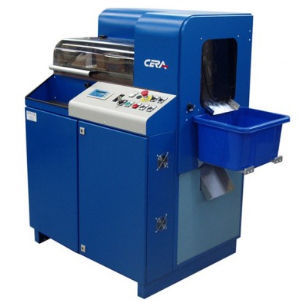

Ultrasonic cutting machine 300

textilestrip fabrichigh-precision

Process Single strap machine to automatically: • Feed the hook or the eye strap • Weld the re-inforcement • Cold cut and sonic weld of the pieces or • Ultrasonic cut and weld of the pieces Strap features • Eye: 1, 2, 3 or 4 rows • Hook: straight or folded Technical features • Output: Up to 3,000 pieces / hour at 100% production rate (welding time 0.2 s) • Sonics: 30 kHz, 1,600 W • Pneumatic: 6 bar • Electrical tension: 220 V single phase, 50 or 60 Hz • Overall machine dimensions: – Dimensions (in m.): 1.50 x 0.85 x 1.20 (h x w x l) – Weight: 380 kg Why Cera Engineering? Because we combine years of experienced know-how in ultrasonic welding, with a technical expertise as a manufacturer of production machines. Industrial equipment at competitive prices. A wide range of cutting and welding tooling. Other machines for the lingerie industry Cera Engineering manufactures a range of machines for the production of lingerie pieces such as bra straps, bra cups and hook-and-eye. CERA UltraStrap model – Machine for the production of bra straps (threading of the slide and ring) CERA UltraStrap_R – To assemble complete straps in automatic with a strap collector at the exit of the machine (Slide + Ring). CERA 520 model – Machine for the production of bra straps (threading of the ring) TFR model – Thermoforming machine to produce bra cups
