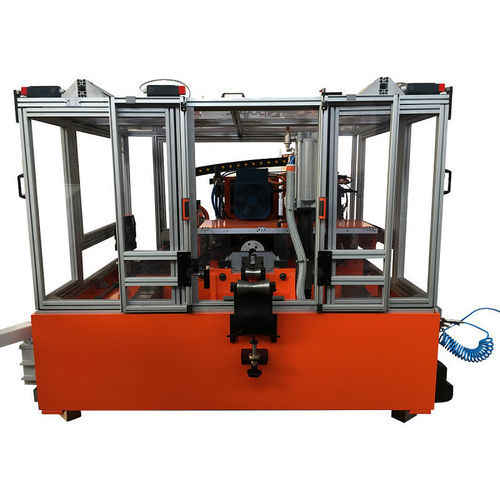

Automatic pipe threading machine RB EVOL
Add to favorites
Compare this product
Characteristics
- Options
- automatic
Description
Overview
CNC production machine for external threads by machining (peeling) or deformation (rolling) without rotating the workpiece.
The bar is fixed so its length is not a limiting factor. Two work spindles on a cross-table transfer different tools to the axis of one or more self-centering clamps. The piece is stopped automatically between pins and its position is adjusted according to the thread length. The operator interface is simple and does not require programming skills. Configurations are available for both peeling and rolling operations.
Customization
The machine is configurable and can be adapted or upgraded to match production requirements.
Main Features
Description
The RB EVOL is designed to produce external threads on fixed bars by machining (peeling) or deformation (rolling). Two spindles on a cross-table enable tool transfer to one or more self-centering clamps. Automatic stop and positioning are managed according to the required thread length. The control interface is user-friendly and suitable for operators without programming expertise. Multiple configurations are offered for peeling and rolling; the machine can be customized for specific production cycles.
Strengths
Technical specifications
CNC production machine for external threads by machining (peeling) or deformation (rolling) without rotating the workpiece.
The bar is fixed so its length is not a limiting factor. Two work spindles on a cross-table transfer different tools to the axis of one or more self-centering clamps. The piece is stopped automatically between pins and its position is adjusted according to the thread length. The operator interface is simple and does not require programming skills. Configurations are available for both peeling and rolling operations.
Customization
The machine is configurable and can be adapted or upgraded to match production requirements.
Main Features
- Base weight: 4500 kg
- Maximum installed power: 55 kW
- Voltage: 400 V 50 Hz
- Air supply: 8 bar
Description
The RB EVOL is designed to produce external threads on fixed bars by machining (peeling) or deformation (rolling). Two spindles on a cross-table enable tool transfer to one or more self-centering clamps. Automatic stop and positioning are managed according to the required thread length. The control interface is user-friendly and suitable for operators without programming expertise. Multiple configurations are offered for peeling and rolling; the machine can be customized for specific production cycles.
Strengths
- Peeling and rolling machine for long bars
- Threading length from 0 to 400 mm
- No limit on the length of the bar to be threaded
- 4-axis CNC, numerical lead screw, brushless vector motors
- Linear bearing guides on large rails
- Management of production programs
- Management of thread starts
Technical specifications
- Model: RB EVOL
- Base weight: 4500 kg
- Maximum installed power: 55 kW
- Voltage: 400 V, 50 Hz
- Air supply: 8 bar
- Threading length range: 0 to 400 mm
- Operation modes: peeling (machining) and rolling (deformation)
- Workpiece handling: fixed bar with self-centering clamps; two work spindles on a cross-table
- Control: 4-axis CNC with numerical lead screw; brushless vector motors
- Guides: linear bearing guides on large rails
- Production management: programs and thread start management
- Customization: configurable and evolvable to production needs
